6.5″ Q Series Speakers and Tweeter with Q Control Crossover Networks
SKU: MBQ-QSE-216 Category: Q-Series Speakers

$1,899.00

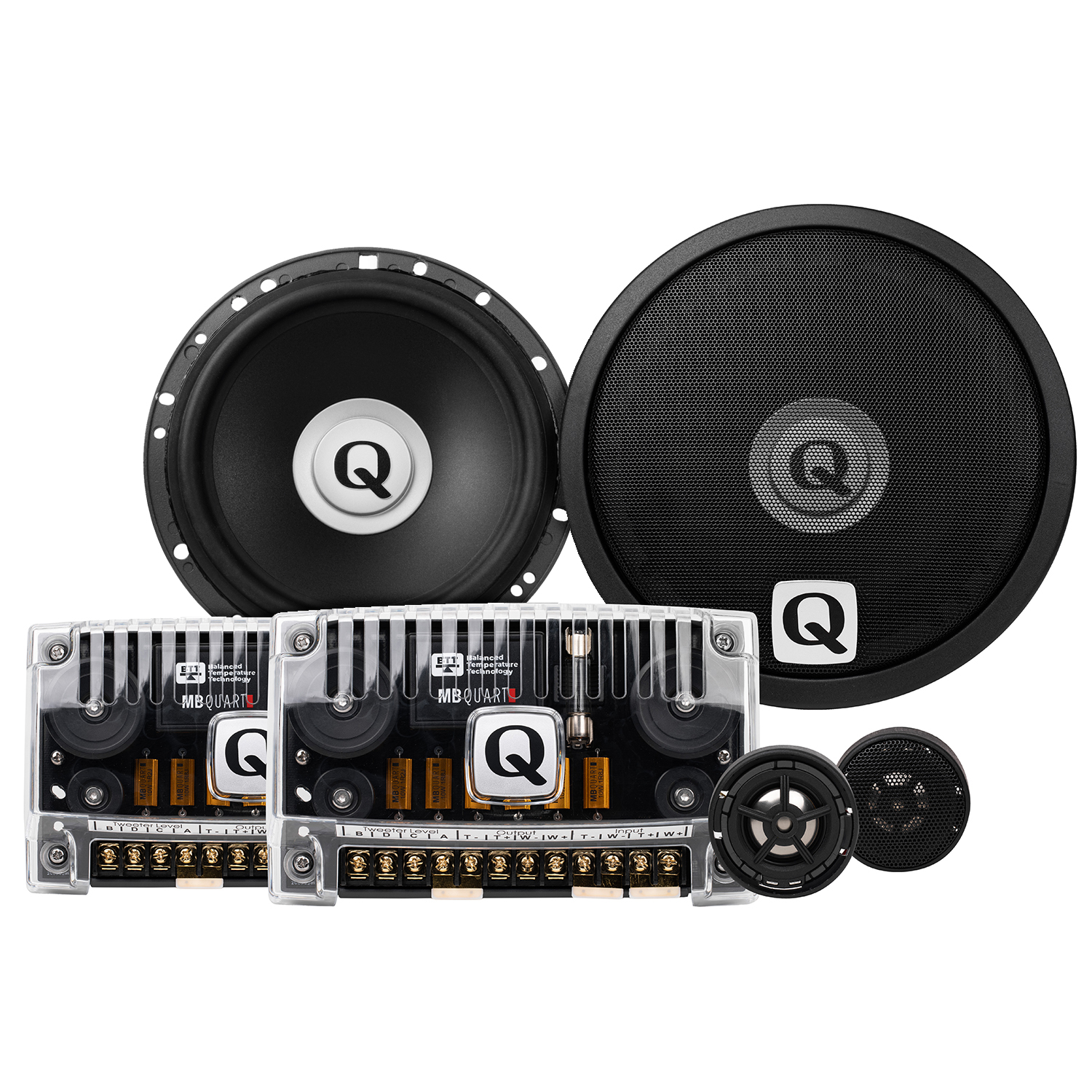

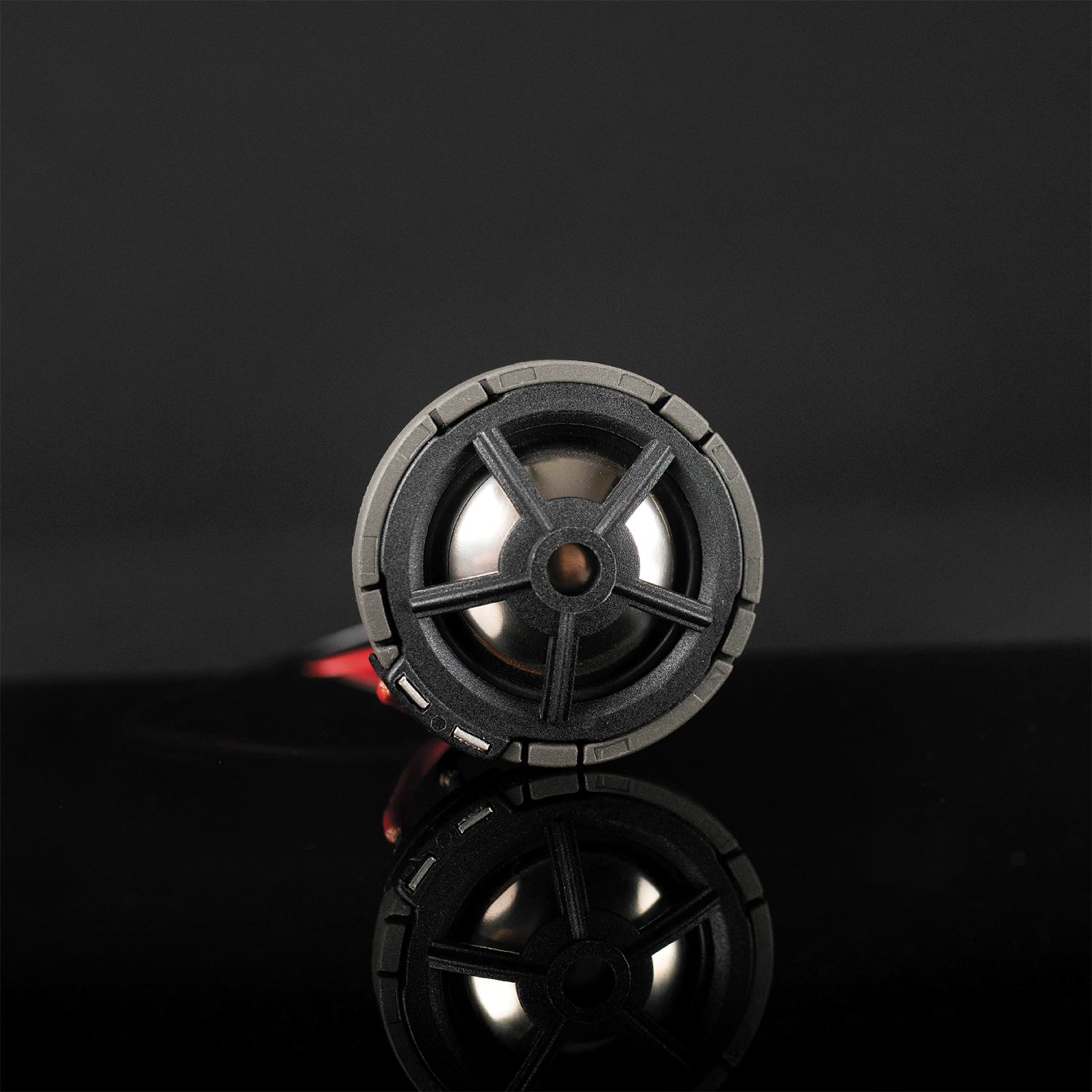

6.5″ Q Series 360 watts 2-Way component speakers with 1″ titanium dome tweeter in a cast-aluminum housing, specially made to dissipate heat & external Q Control audiophile crossover networks

Colour

Black
Warranty

2 Years
Compatible Vehicles

Universal
Speaker RMS Power Handling

170
Speaker Peak Power Handling (watts)

360
Speaker Impedance (ohms)

4
Speaker Frequency Response

35Hz-32kHz
Speaker Sensitivity

12dB/octave
Speaker Height (in)

2.875
Speaker Width (in)

6.5
Speaker Mounting Diameter / Cut Out (in)

5.68
Speaker Outside Diameter (in)

6.5
Speaker Mounting Depth / Chassis Depth (in)

2.5

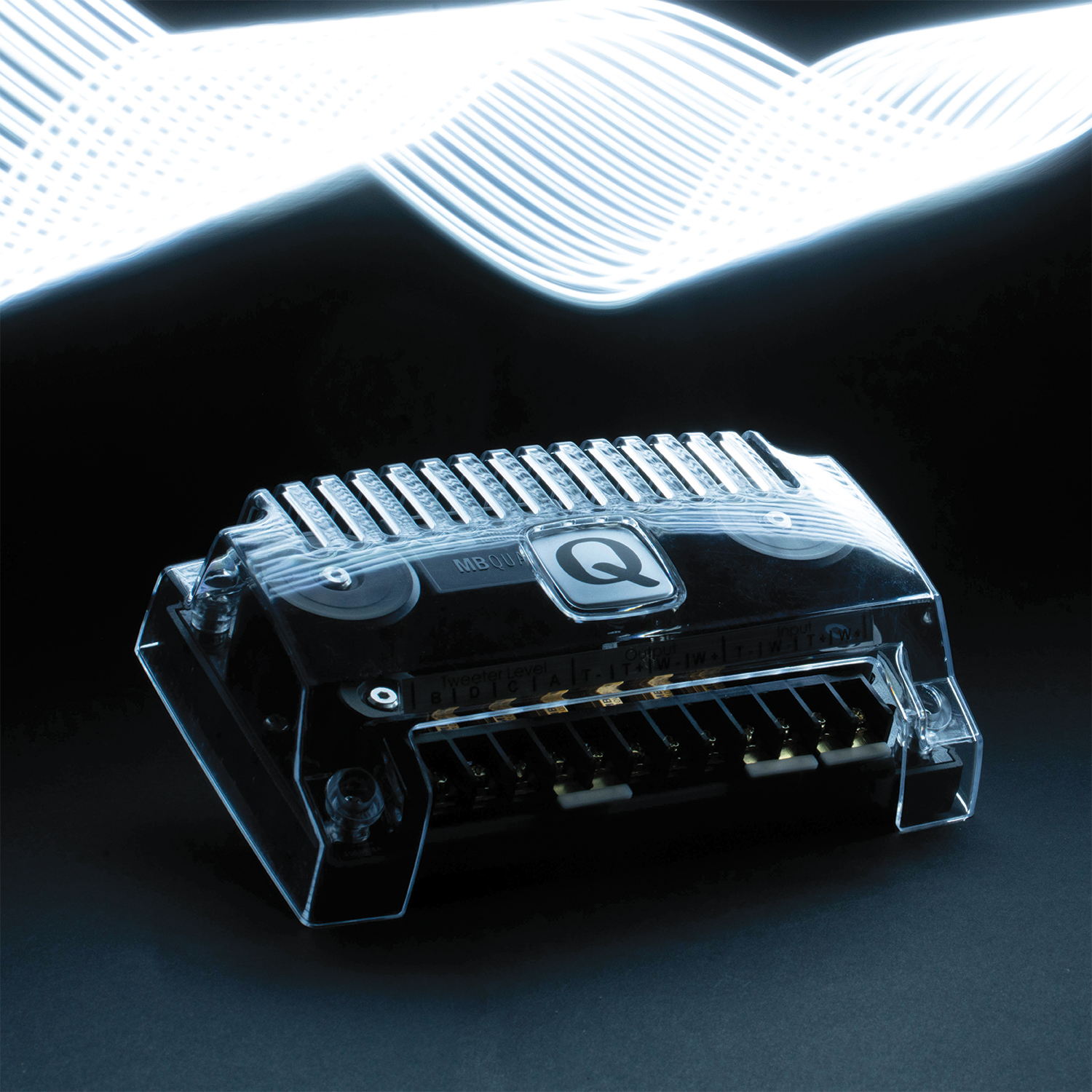

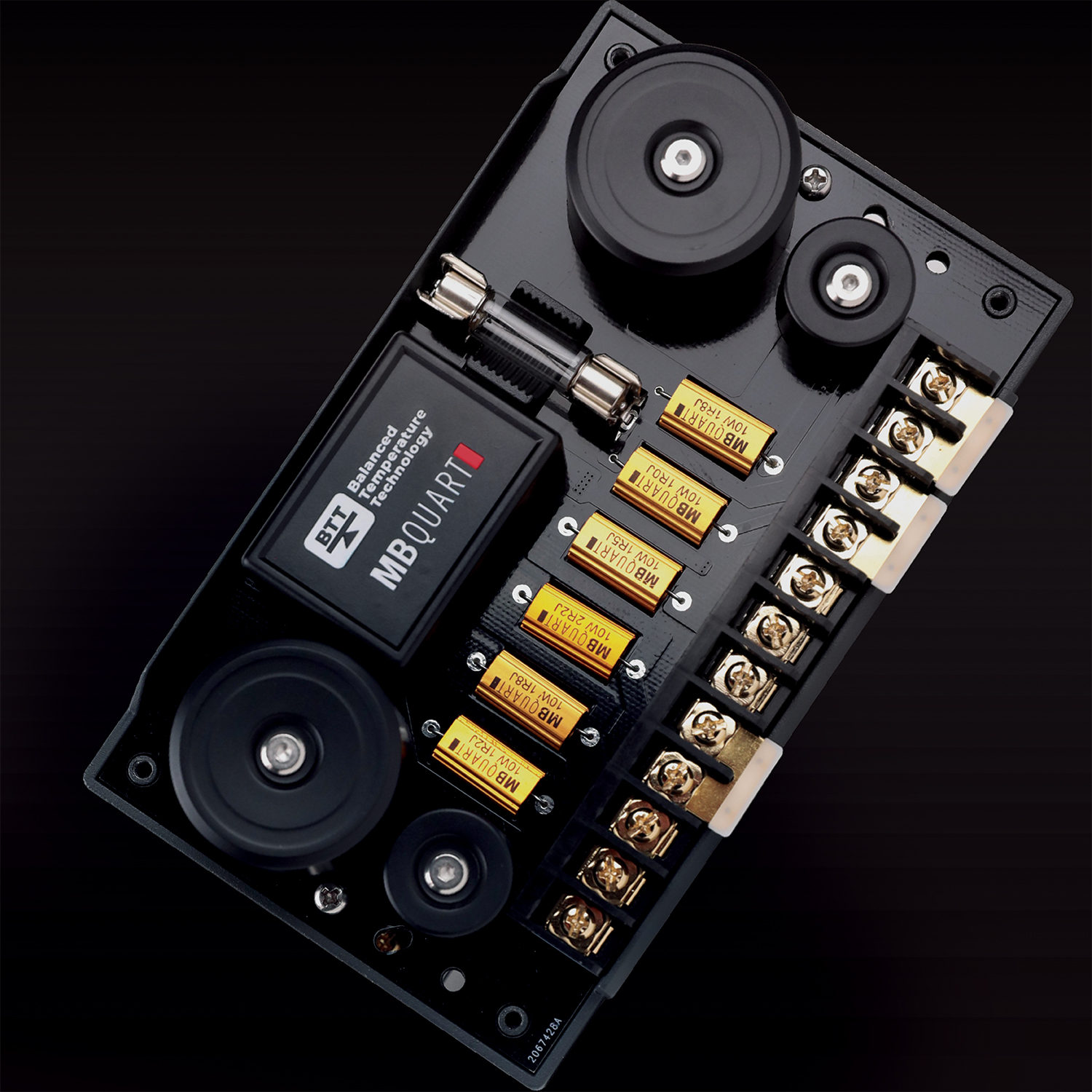

External Component Crossover

Q Series QSE component (2-way) system feature an external audiophile Q Control crossover network which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components with "low loss" Polypropylene Film caps and air wound coils for superb sound quality. 1% high tolerance metal film resistors which reduces phase shift for better staging and imaging.

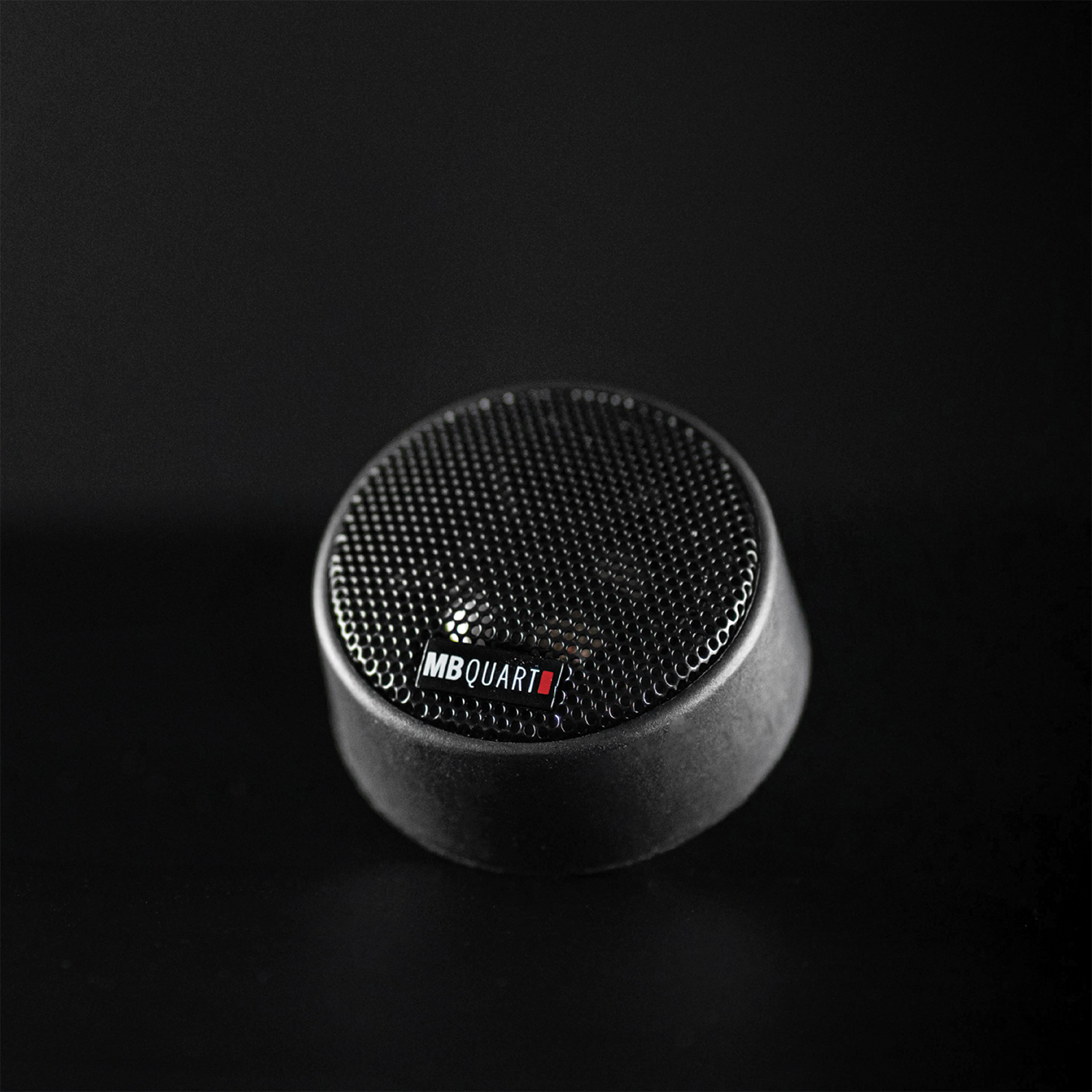

Tweeter Hardware

Hardware for multiple tweeter mounting solutions are included.

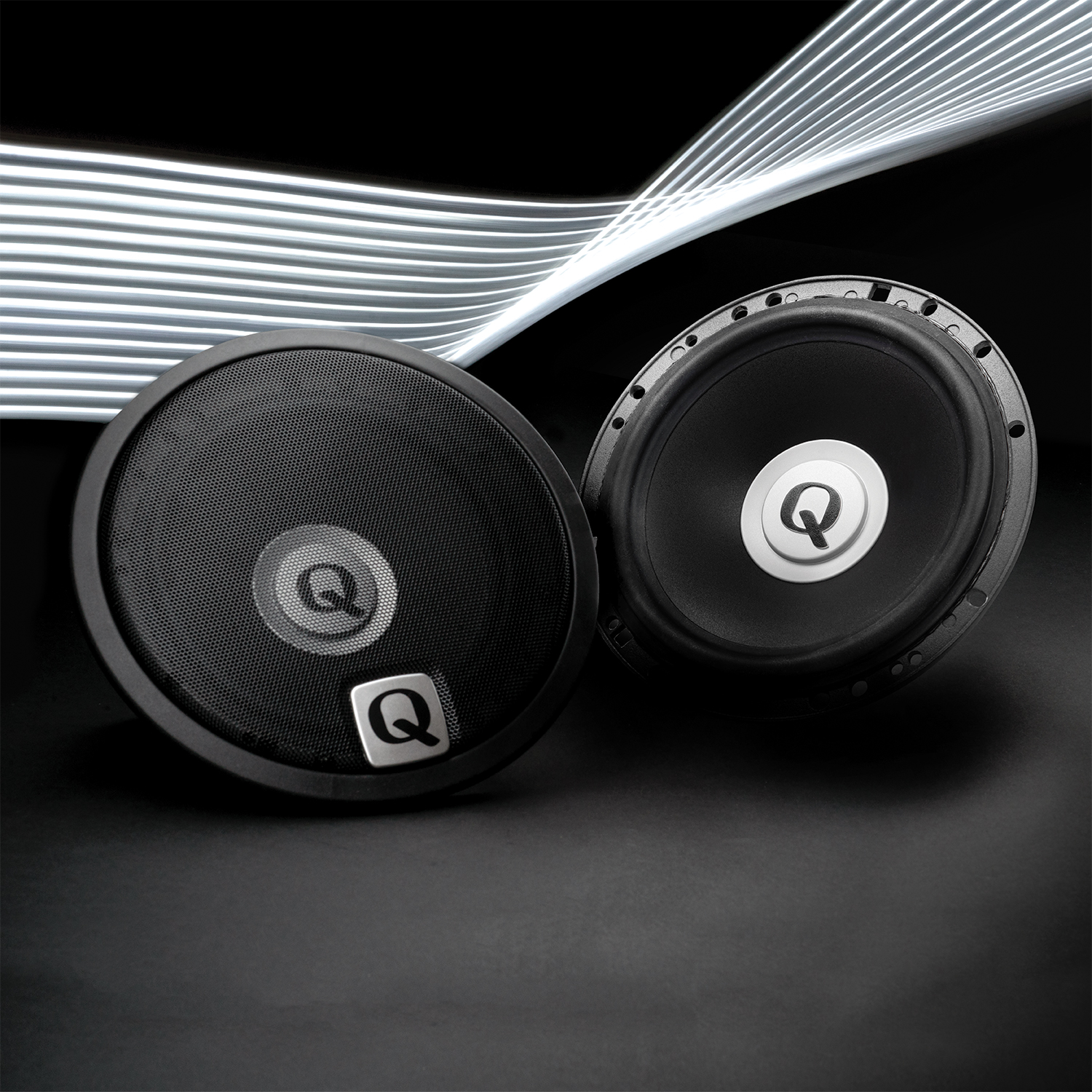

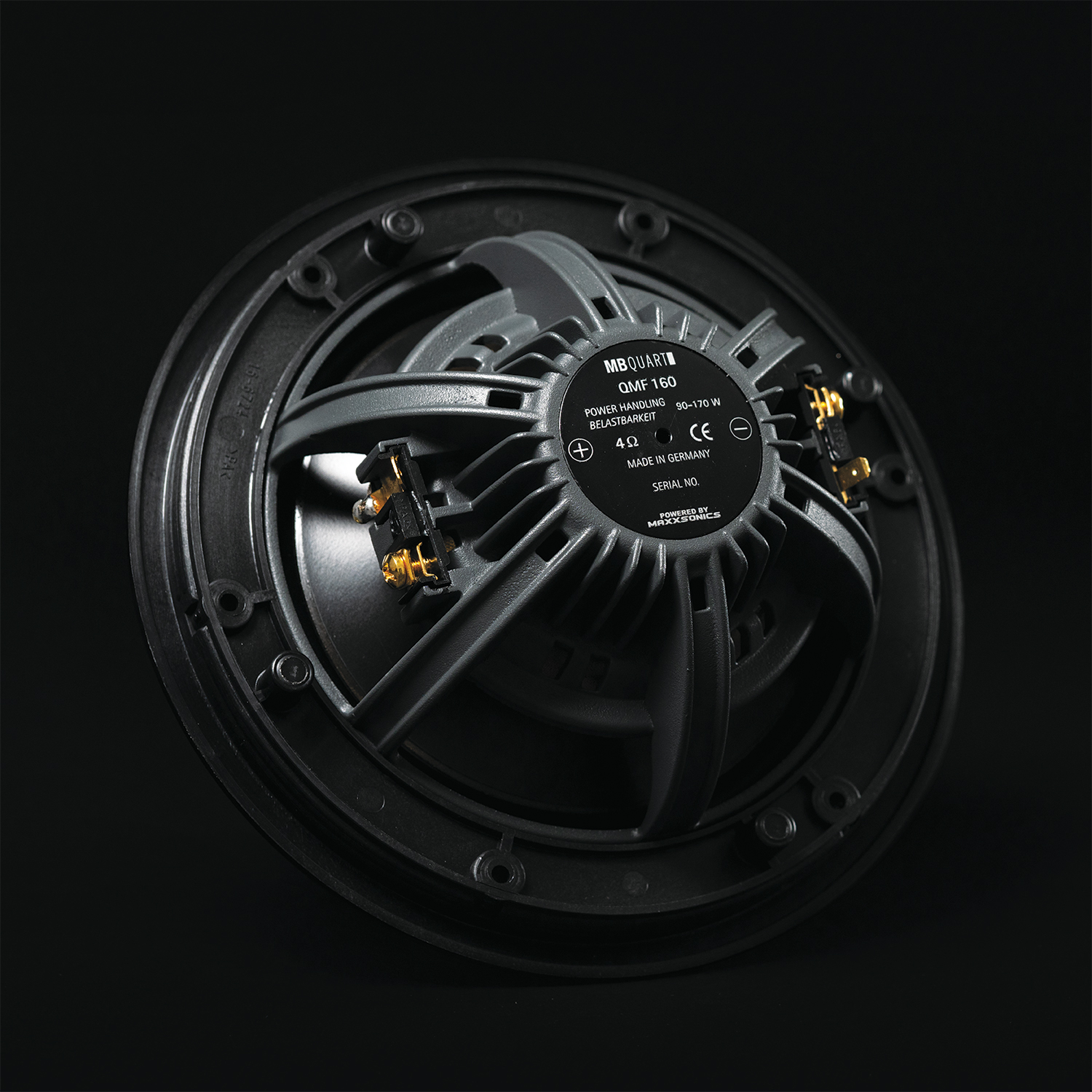

Frame

Diecast aluminum basket is designed to be lightweight and extremely rigid. The low-profile form can be easily installed in most factory locations with little or no modification.
Motor

Solid neodymium magnet in a low carbon steel containment cup. This is the strongest magnet that can be used and focuses all the energy around the voice coil.
Connectors

Gold plated 4-way connection terminal that is opposite mounted for consistent curvilinear cone performance. Connection types include solder, screw-down, spade or fork terminal.

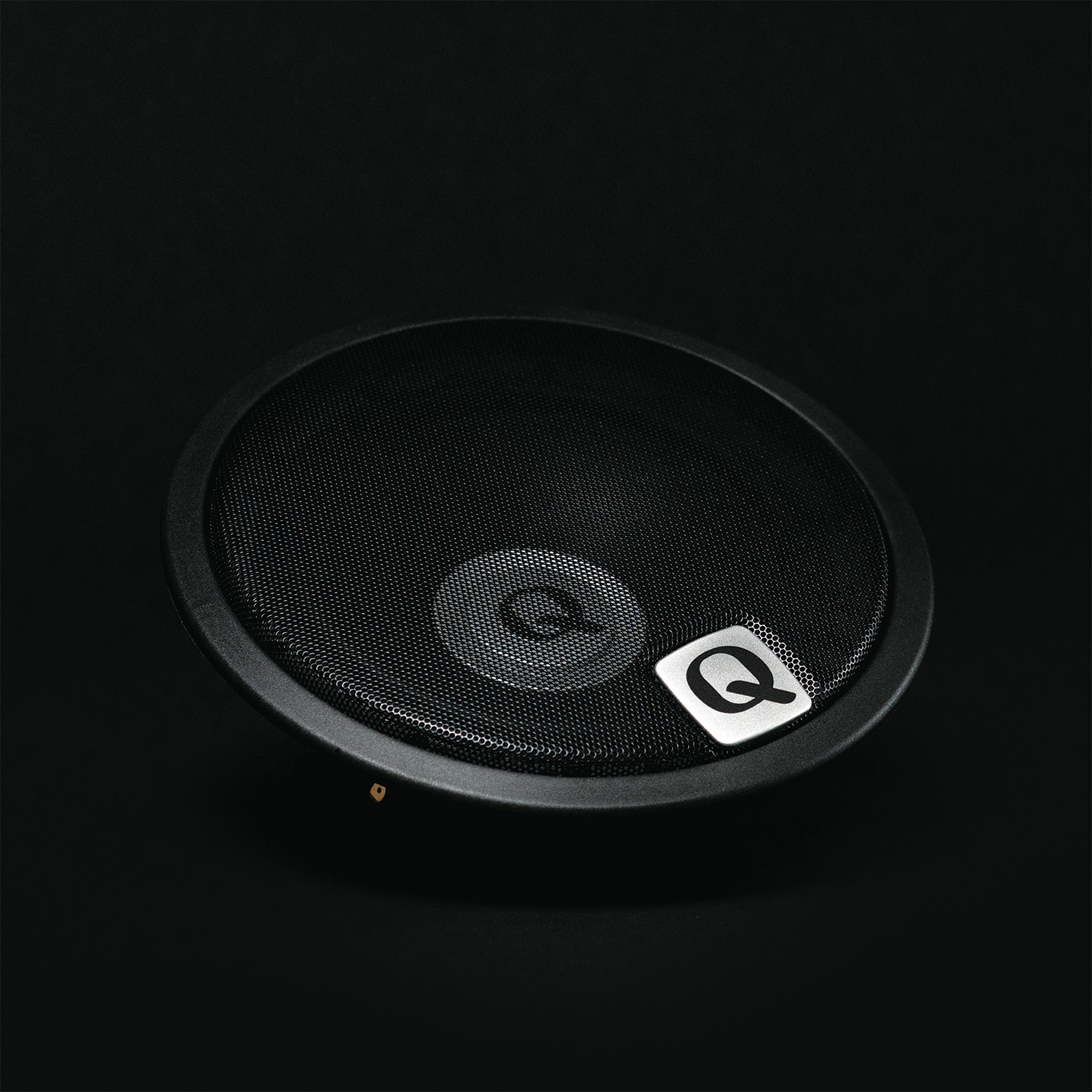

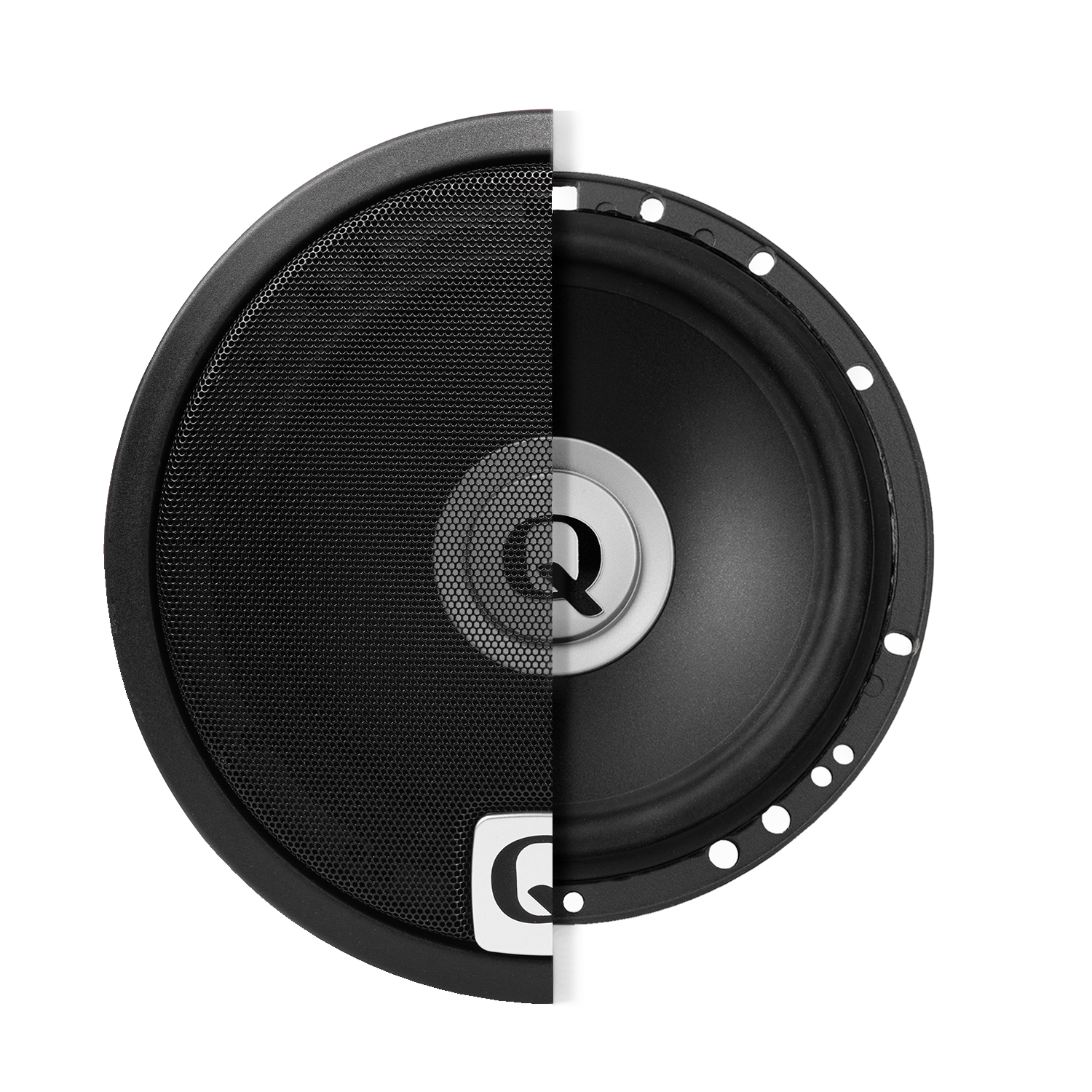

Grills

Included

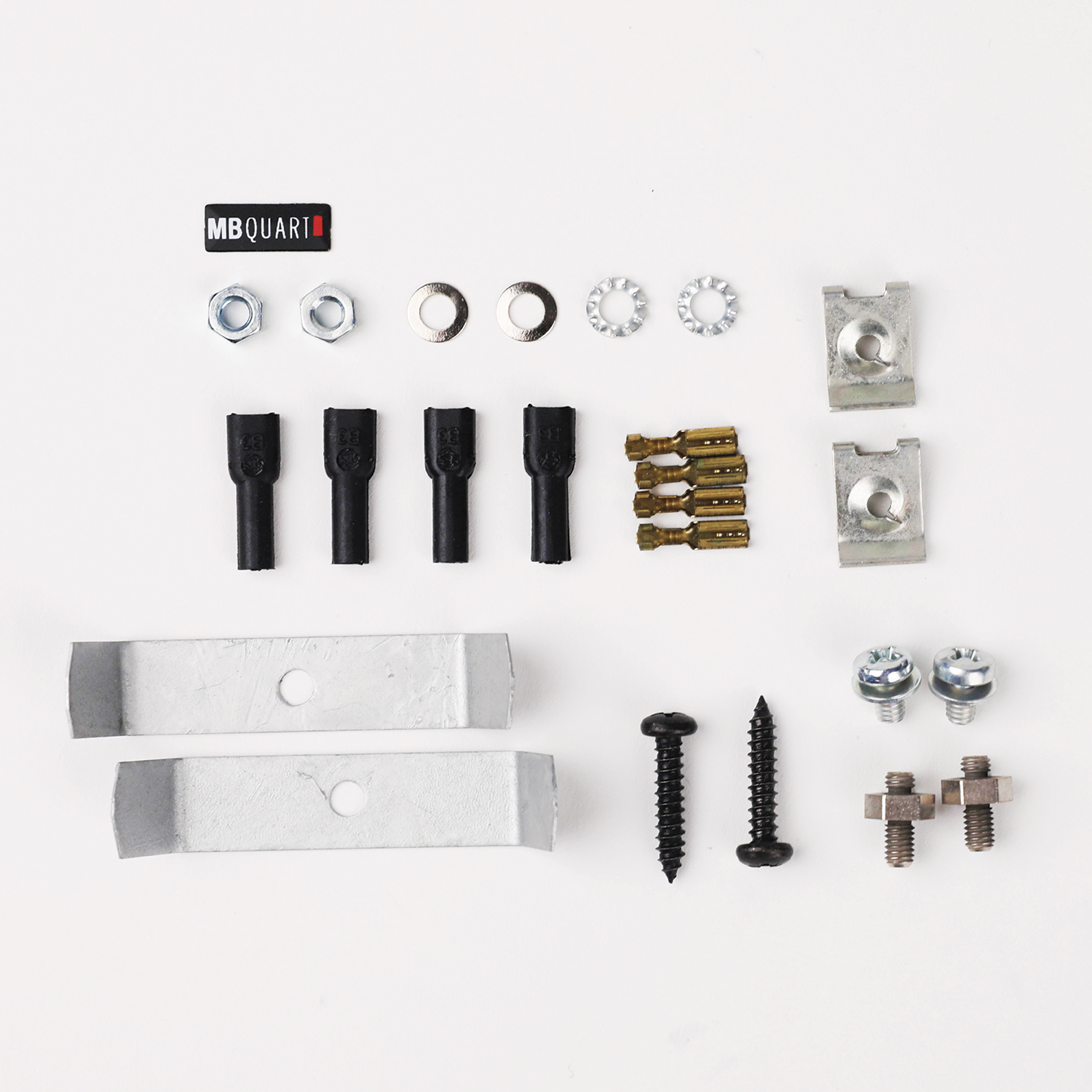

Hardware

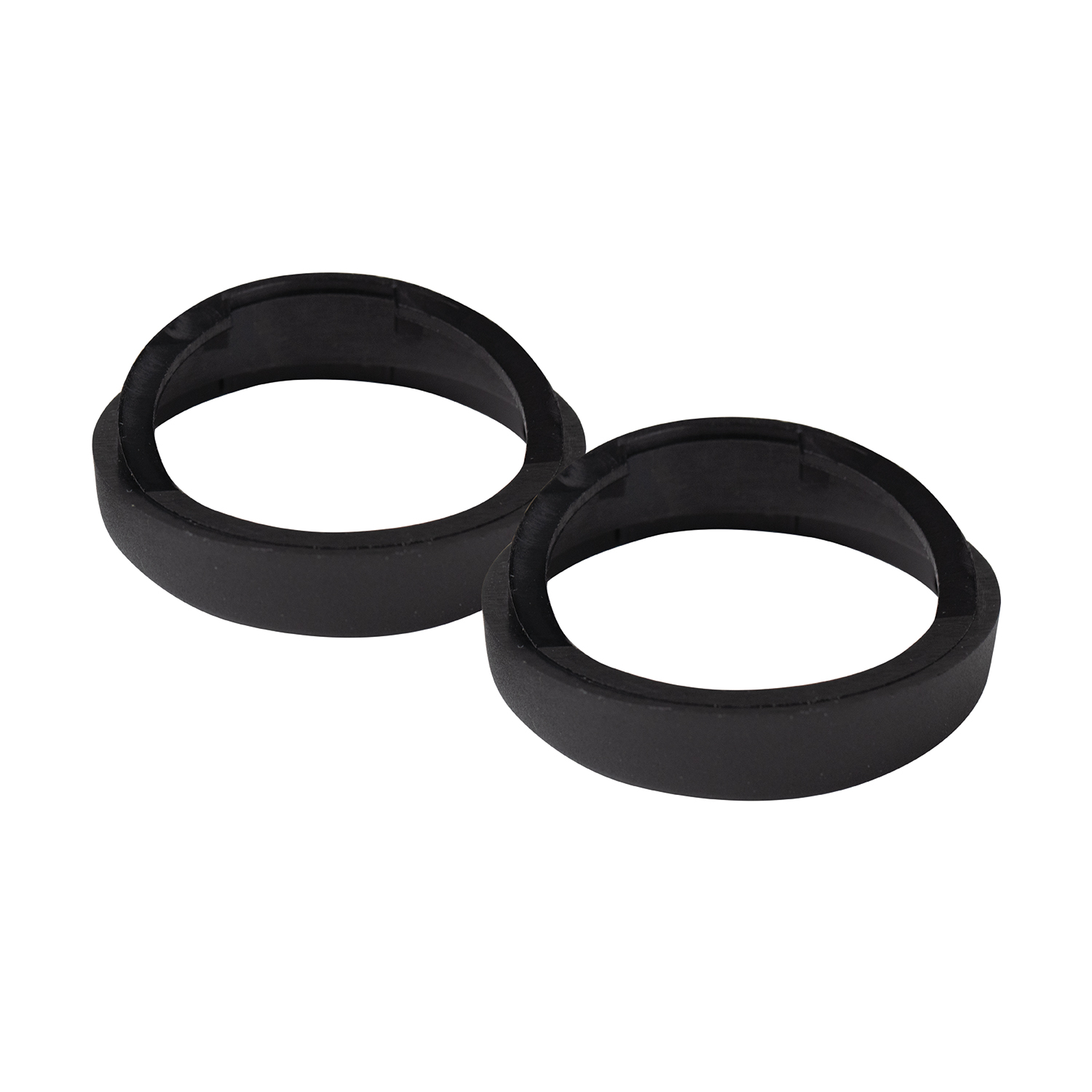

Flush-mount ring brack and holes accommodate OEM and custom installations for the midrange. Flush, flushed angle, and surface mounting options for the tweeter. There are four holes in the base of the crossover to allowing mounting on any flat surface.
Additional Features

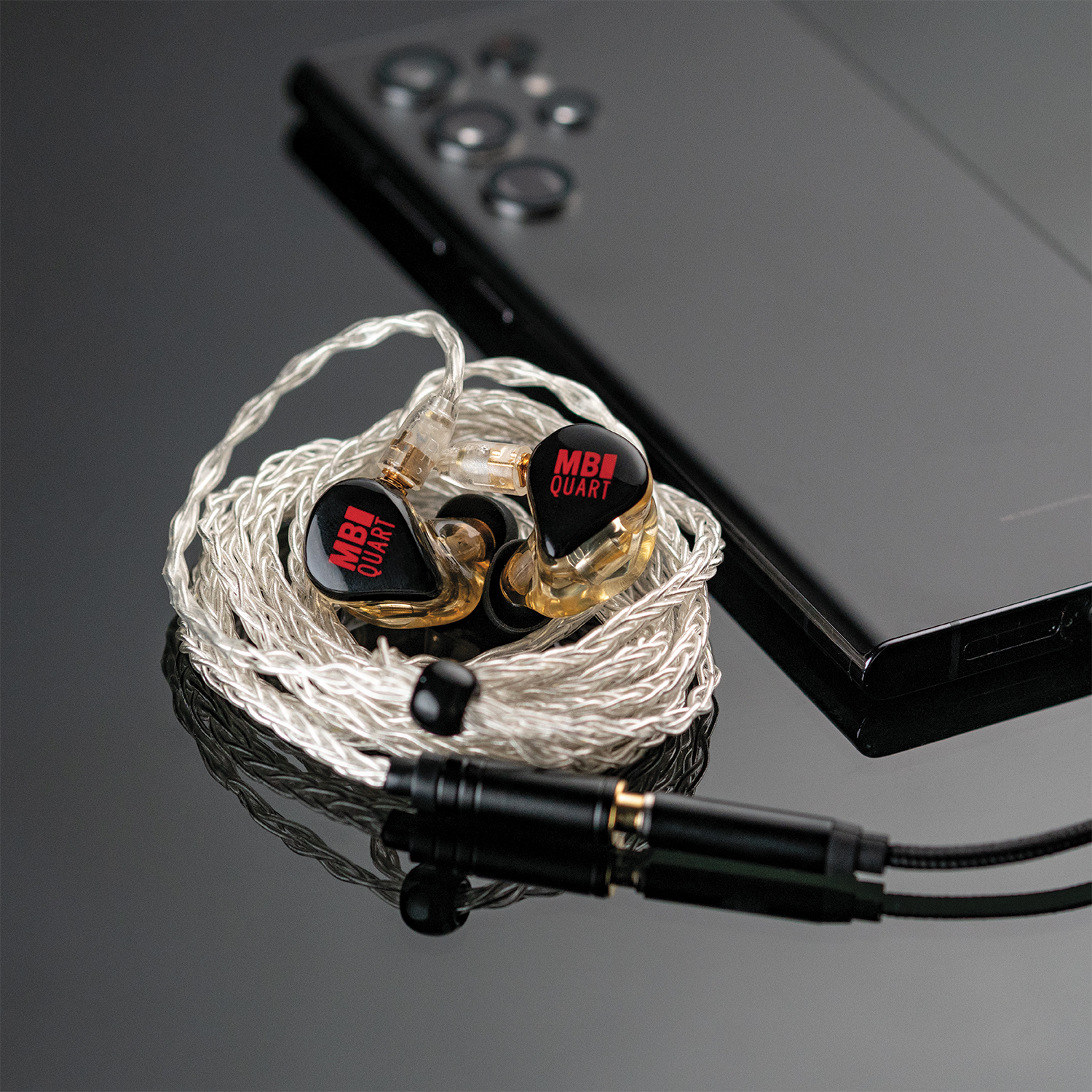

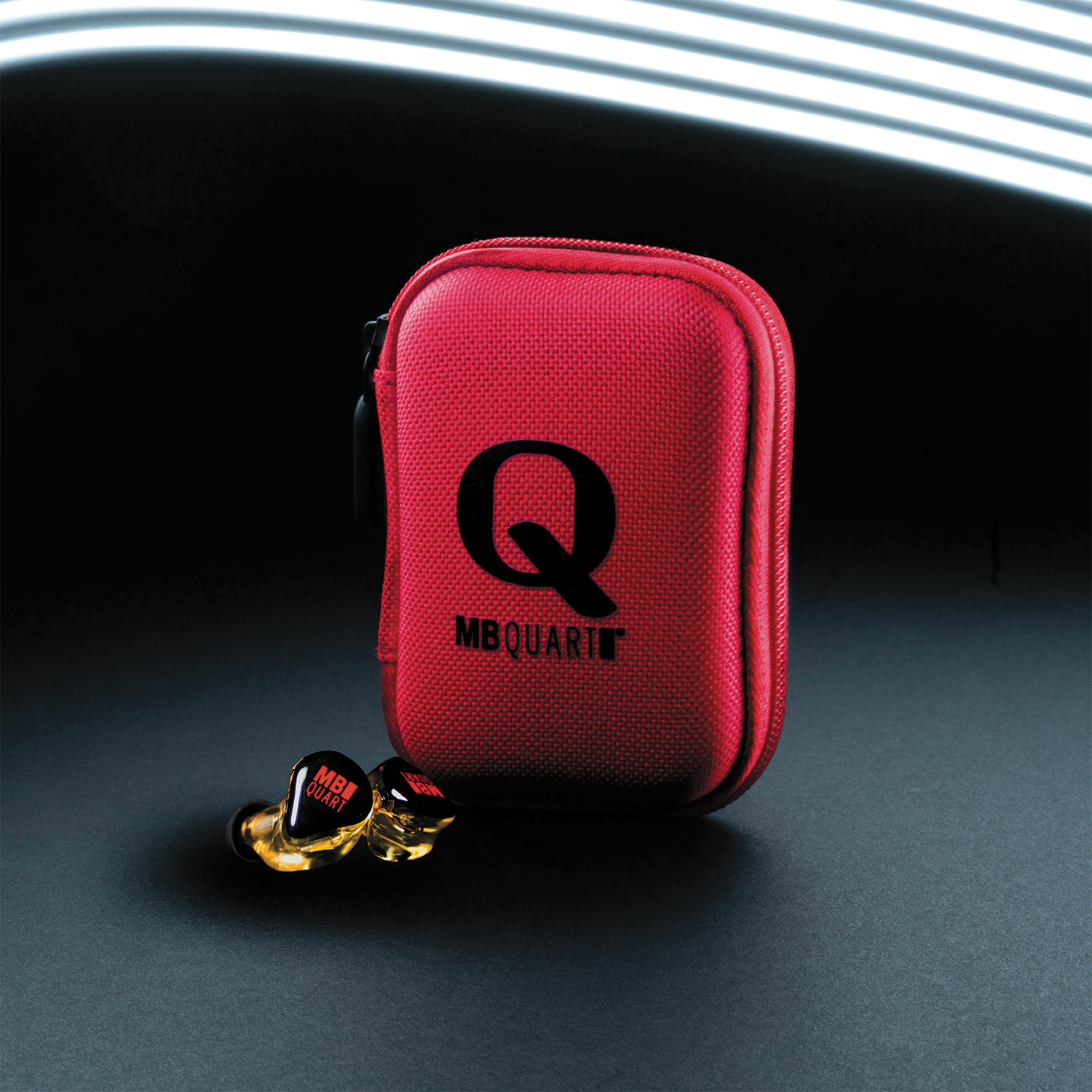

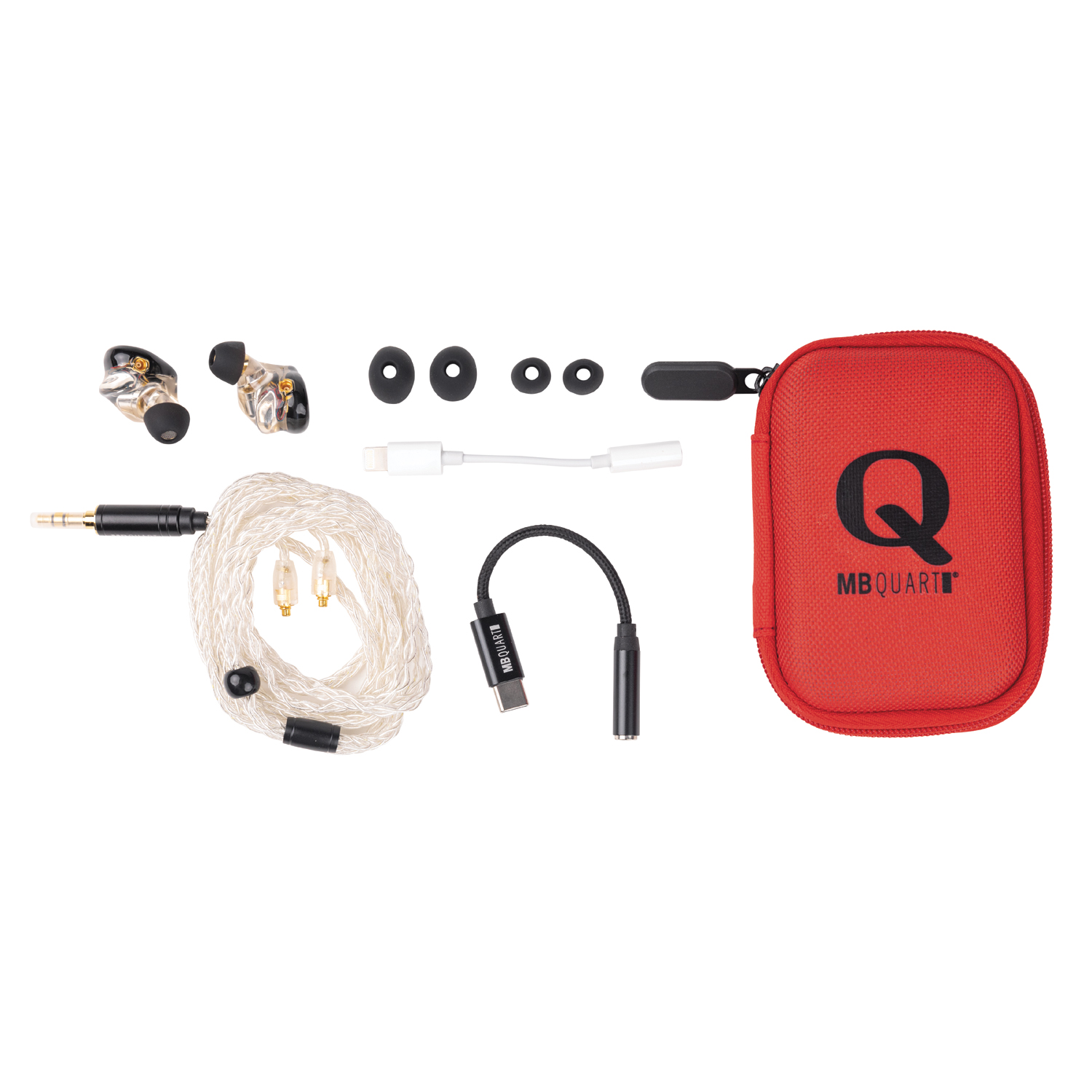

Q Series audiophile in-ear studio monitors are included to bring the Q listening experience on the go. 3.5mm connection with adapters for both USB-C and Lightning connection.
