SKU: MBQ-GMR-LCD Category: Source Units

$299.00

Gauge mount, Bluetooth, AM/FM USB radio with built in amplifier. Bass, treble controls, front & rear RCA outputs. 4 Volt input for dynamic power capability. RF-REM compatible for remote control connectivity.

Series

Nautic

Color

Black

Warranty

1 Year

IPX Rating

IPX67

Compatible Vehicle

Universal UTV

UTV Kit Total System Power (watts)

400

Source Unit

N2-WBT: Switch Mounted Bluetooth Connected Joystick Controller.

Rear Speakers

NPT1-116: 6.5 inch 2 way Speakers in Tower Enclosures.

Rear Speakers Mounting

Roll Cage Mounted.

Full Range Amplifier

NA2-400.2: 400 Watt Two Channel Class D, Compact Powersports Amplifier.

Full Range Amplifier Mounting

Minimal Mounting Height/Depth Required.

Harnessing

PS-AMPKIT: Universal Powersports Amplifier Installation Kit.

Compatible Vehicle Fitment

Universal

Marine Grade Protection / IPX Rating

This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. Meets or exceeds IP67 requirements for water and dust proofing.

Source Unit Mounting

Any Available Carling Style Switch Hole.

Amplifier Features

This audio system is powered by the NA2 series of amplifiers. The stereo amplifier is operating in 2 ohm mode for maximum volume to the speakers.

Mount / Harness

Plug and Play Harness. Waterproof Connectors with premeasured wires. No guess work, no installation mistakes.

Source Unit Tuner Section FM Stereo Frequency Range

87.5MHz-108MHz

Source Unit Tuner Section S/N Ratio

> 55dB

Source Unit Bluetooth Range (ft)

32

Source Unit RMS Power Output (watts)

4 x 20

Source Unit Peak Power Output (watts)

4 x 40

Source Unit S/N @1W

81.2dBA

Source Unit Frequency Response (Aux In)

85Hz-20kHZ

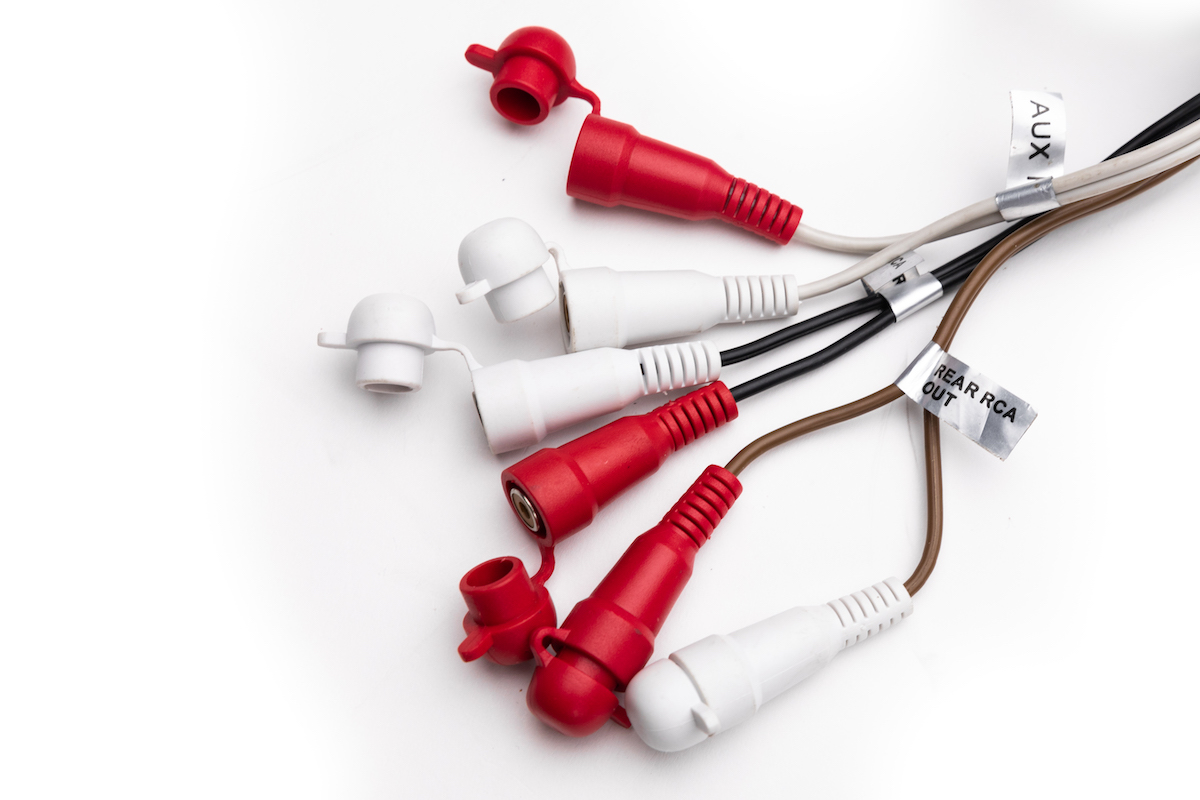

Source Unit Pre-amp Outputs (Y/N #)

2pr Front/Rear

Source Unit Pre-amp Voltage

4.0V

Source Unit Minimum Impedance (ohms)

4

Source Unit Display Type

LCD

Source Unit Display Backlit

Yes

Source Unit LCD Font Size

Medium

Source Unit Dimensions Mounting Hole (in)

3

Source Unit Dimensions Total Mounting Depth (in)

4.1

Source Unit Dimensions Mounting Bezel (Round) (in)

4.1

Apple Control

Quick control and access of iTunes collection with iPhone, iPod and iPad.

Source Type

AM/FM/Bluetooth Enabled Gauge Mount Radio allows all access to radio stations and content from Bluetooth enabled devices.

Input Types

Bluetooth, RCA, USB: Nearly nothing the device can not play.

Control Buttons

Unit is adjusted by master knob and menu selection.

Bluetooth Connect

Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.

Secure Simple Pairing

Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.

Quick-Pair

No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.

Built-In Power

Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.

Control Method

Unit is adjusted by master knob and menu selection.

AM/FM Tuner Presets

AM: 8 station, FM: 12 station. AM1, AM2, FM1, FM2, FM3 each memorize 4 stations each.

Frequency Range

FM: 87.5-108, AM: 530-1710

USB / Apple / Charging Port

1 USB

Bluetooth Version

Version 4.2

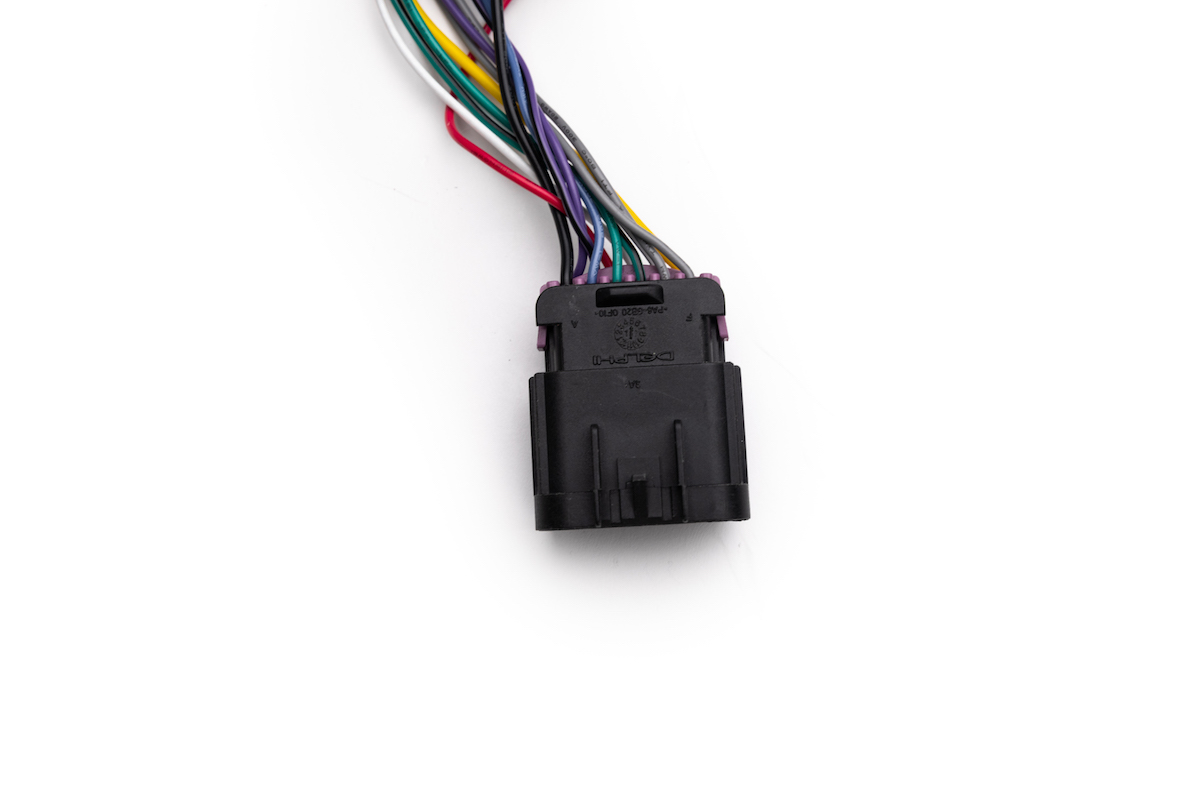

Main Connector Type

MOLEX connector for simple installation and removal of unit when needed.

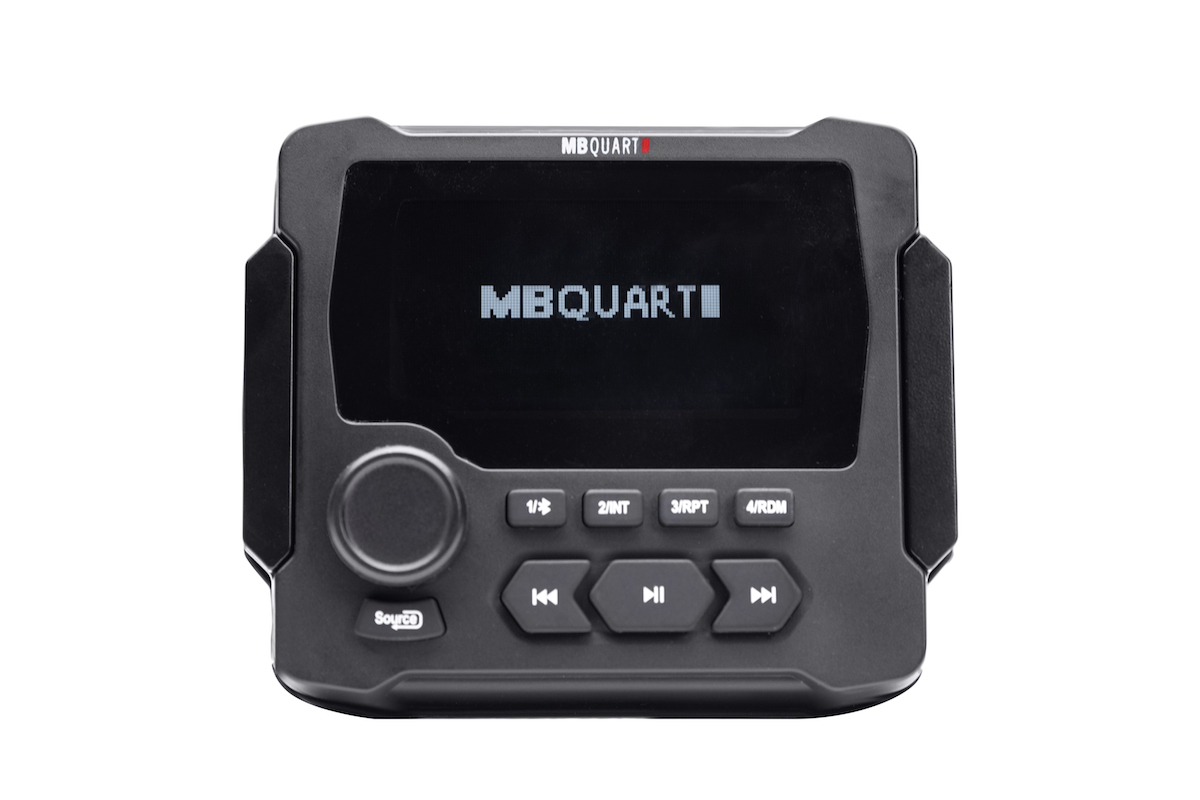

Media Screen

On board 3.5 inch high-contrast LCD screen.
