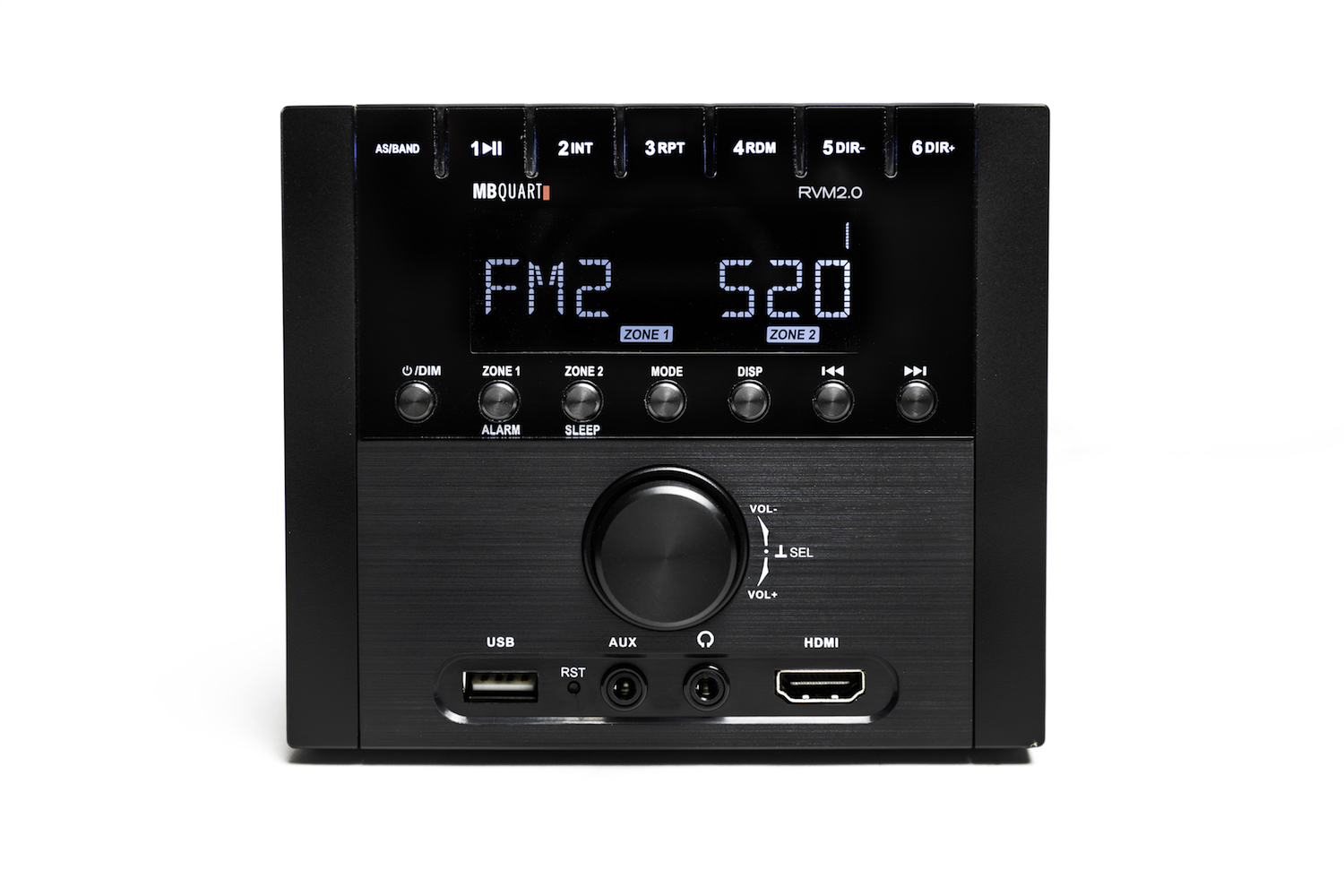

Digital Multimedia, Multi-Zone, 160 Watt RV Mechless Source Unit with AM/FM & Bluetooth 4.0.
Digital Multi-Media Unit
Digital Multi-Media Unit
$239.00
Out of stock
| Series | RV |
|---|---|
| Color | Black |
| Warranty | 1 Year |
| Source Unit Tuner Section FM Stereo Frequency Range | 87.5MHz-108MHz |
| Source Unit Bluetooth Range (ft) | 32 |
| Source Unit RMS Power Output (watts) | 4 x 20 |
| Source Unit Peak Power Output (watts) | 4 x 40 |

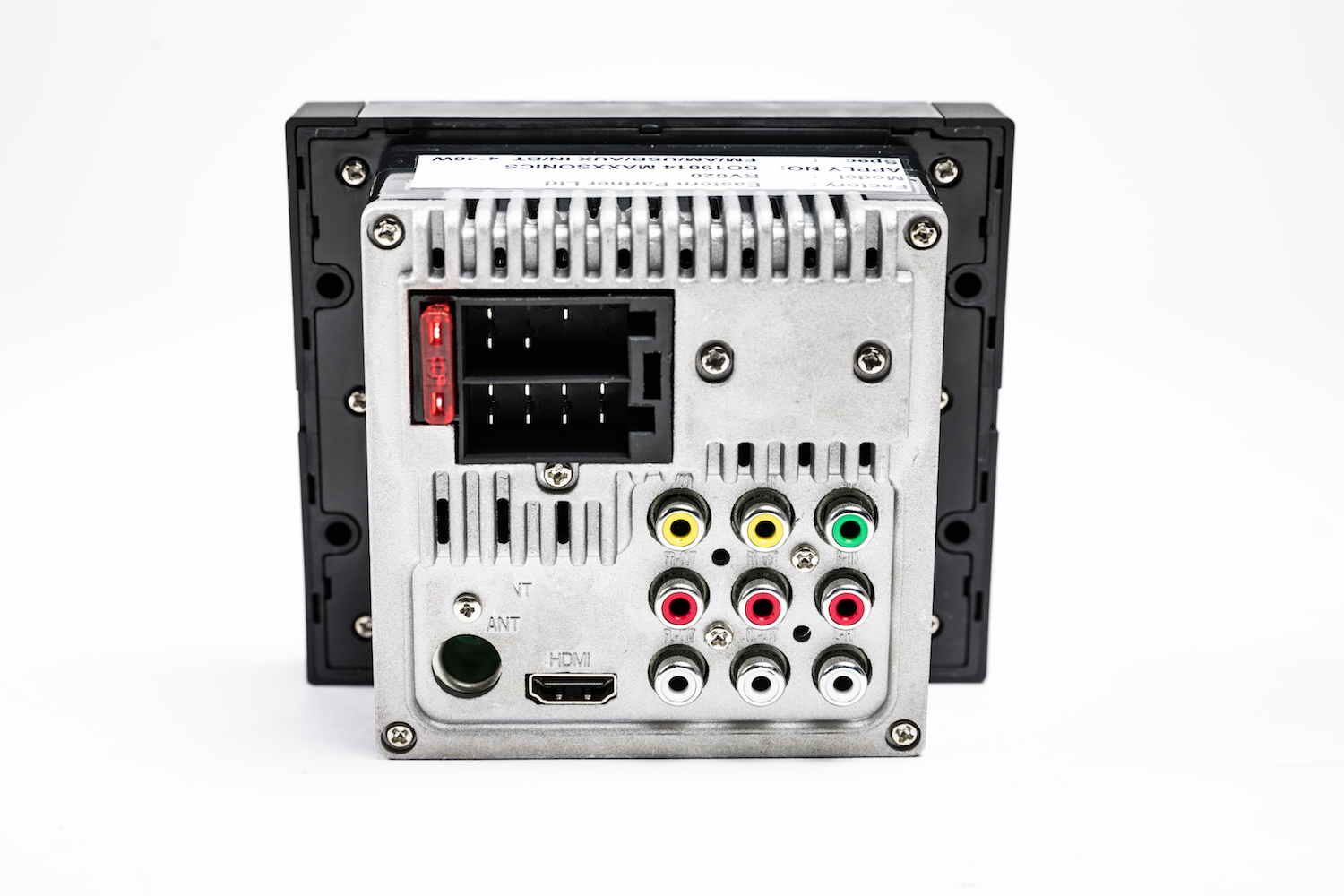

| Source Unit Pre-amp Outputs (Y/N #) | AUDIO: 1 RCA Subwoofer, AUDIO: 2 RCA Pair Front/Rear, AUDIO: Headphones Front Panel |
| Source Unit Pre-amp Voltage | 2.0V |
| Source Unit Minimum Impedance (ohms) | 4 |
| Source Unit Display Type | LCD |
| Source Unit Display Backlit | Yes |

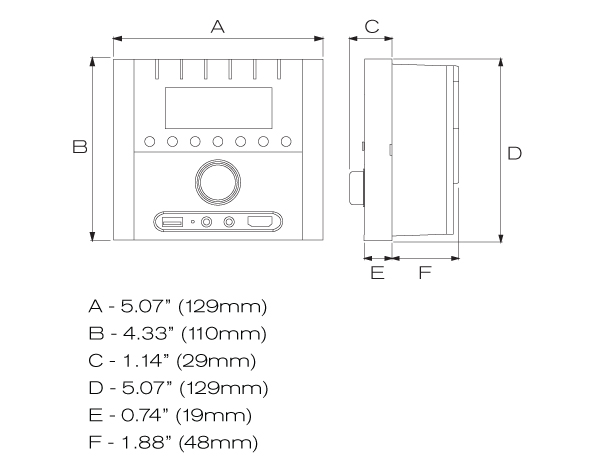

| Source Unit Dimensions Mounting Hole (in) | 3.88 x 4.0 |
| Source Unit Dimensions Total Mounting Depth (in) | 1.88 |
| Additional Details | MAXIMUM THD+N AT 4 OHMS: 76.2dBA, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 2 Volts, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): -80.7dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, STEREO SEPARATION (AUX INPUT): -47dB @ 5kHz, FM MONO USABLE SENSITIVITY: 6.0V, AM MONO USABLE SENSITIVITY: 23.8V |
| Source Unit Dimensions Mounting Bezel (Round) (in) | 5.07 x 4.33 x 0.74 |
| Apple Control | Quick control and access of iTunes collection with iPhone, iPod and iPad. |
| Source Type | AM/FM/Bluetooth |
| Input Types | Bluetooth, RCA, and USB. The USB supports all new technology MP3, WMA, APE, FLAC and WAV files. |
| Bluetooth Connect | Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. |
| Secure Simple Pairing | Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair | No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY. |
| Built-In Power | Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. |
| Control Method | Unit is adjusted by master knob and menu selection. |
| AM/FM Tuner Presets | AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations. |
| Frequency Range | FM: 87.5-108MHz, AM: 520-1710kHz |
| Video Input | HDMI Front/Rear, Pass Through |
| Additional Inputs | HDMI THRU PUT: All audio and video from satellite or other digital services are pushed to the TV monitor and audio system. |
| Dual Audio Zone Capability | Control volume in two different areas independently, such as passenger area and outdoor speakers. |
| USB / Apple / Charging Port | Yes (Front panel, quick charge) |
| Bluetooth Version | Version 4.0 |
| Additional Features | ALARM CLOCK: On/Off Options, Alarm, Sleep, Power Up, Beep. |
