Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
Five Speaker 800 Watt STAGE 5 Audio System
SKU: MBQR-STG5-RC-1 Category: Polaris RZR - Ride Command

$3,449.00

Five Speaker 800 Watt STAGE 5 Audio System designed to integrate into the vehicle’s RIDE COMMAND source unit to control the system which includes two power amplifiers powering 4 compression horn speakers, 10″ subwoofer in a ported enclosure. All necessary mounting panels & harnessing are included

Series

Polaris RZR Tuned

Colour

Black

Warranty

2 Years

IPX Rating

IPX5, IPX67

UTV Kit Total System Power (watts)

800

Additional Details

See Kit Inclusions and Features & Benefits for product components and details.

Source Unit

SOURCE UNIT INTEGRATION: Adapters to integrate with Polaris RIDE COMMAND (The actual RIDE COMMAND source unit is NOT INCLUDED).

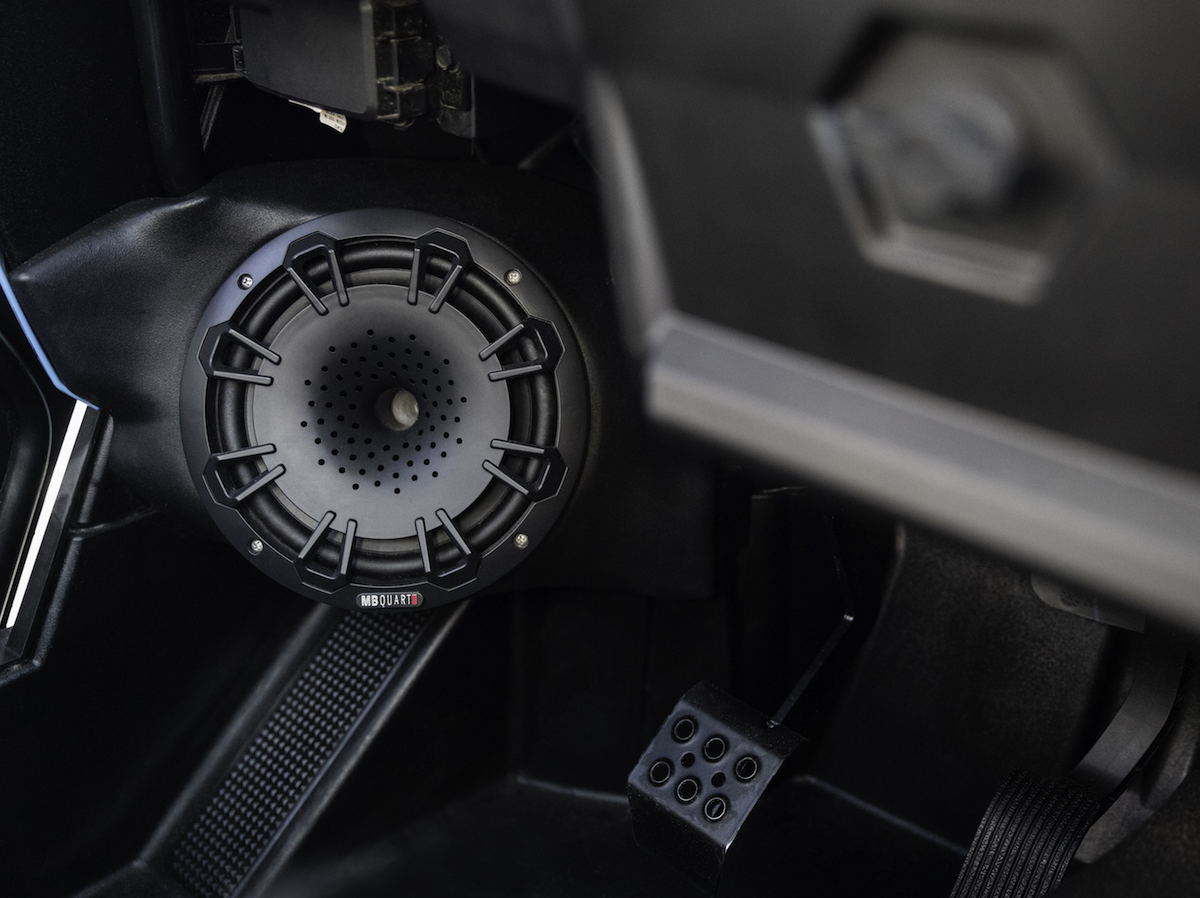

Front Speakers Mounting

Kick panel mounted HDPE composite enclosures are premounted into pods for simple installation.

Rear Speakers

High SPL 8 inch compression horns (NHT1-120BPR) speaker pods are included for 30% more volume.

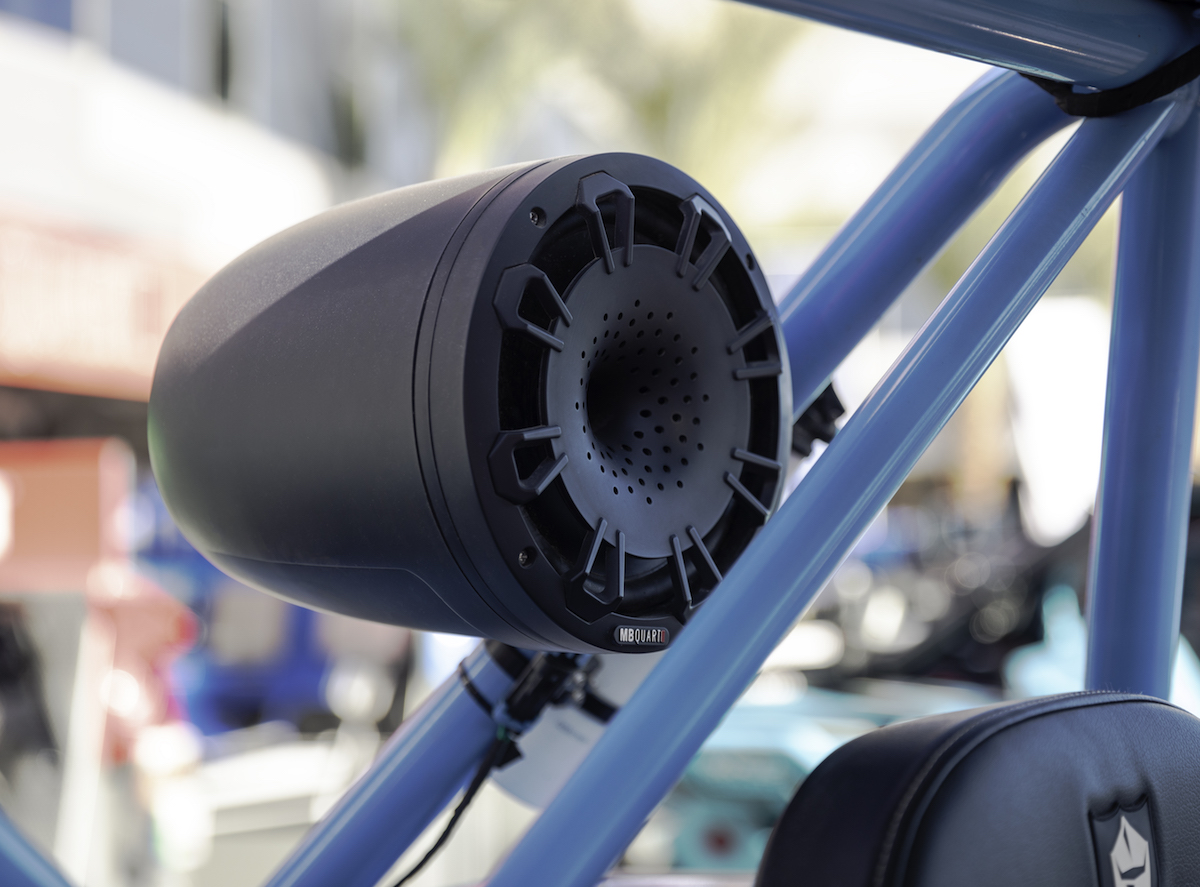

Rear Speakers Mounting

Roll Cage Mount Speakers with Swivel Mount Brackets for rear pods.

Subwoofer

10 inch, Dual 4 ohm Subwoofer, RZR Specific Under-Dash Ported Subwoofer Enclosure.

Subwoofer Mounting

Replaces the glovebox and mounting bolts and plates are included.

Full Range Amplifier

High efficiency NA2-400.2 400 Watt Two Channel Class D, Compact Powersports Amplifier.

Full Range Amplifier Mounting

Full system harness capable of accommodating source unit, 2 amplifiers, which power 4 speakers, and the subwoofer.

Subwoofer Amplifier

High efficiency NA2-400.1 400 Watt Class D, Compact Powersports mono Subwoofer Amplifier.

Subwoofer Amplifier Mounting

RZR Amplifier Mounting Brackets are included.

Harnessing

Full system harness capable of accommodating source unit, 2 amplifiers, which power 4 speakers, and the subwoofer.

Accessories

MBQR-ACC-1: RZR Radio and Dual Amplifier Harness is included with the system. RIDE COMMAND adapters are included.

Compatible Vehicle Fitment

Polaris RZR 2014-Current with RIDE COMMAND

Source Unit Features

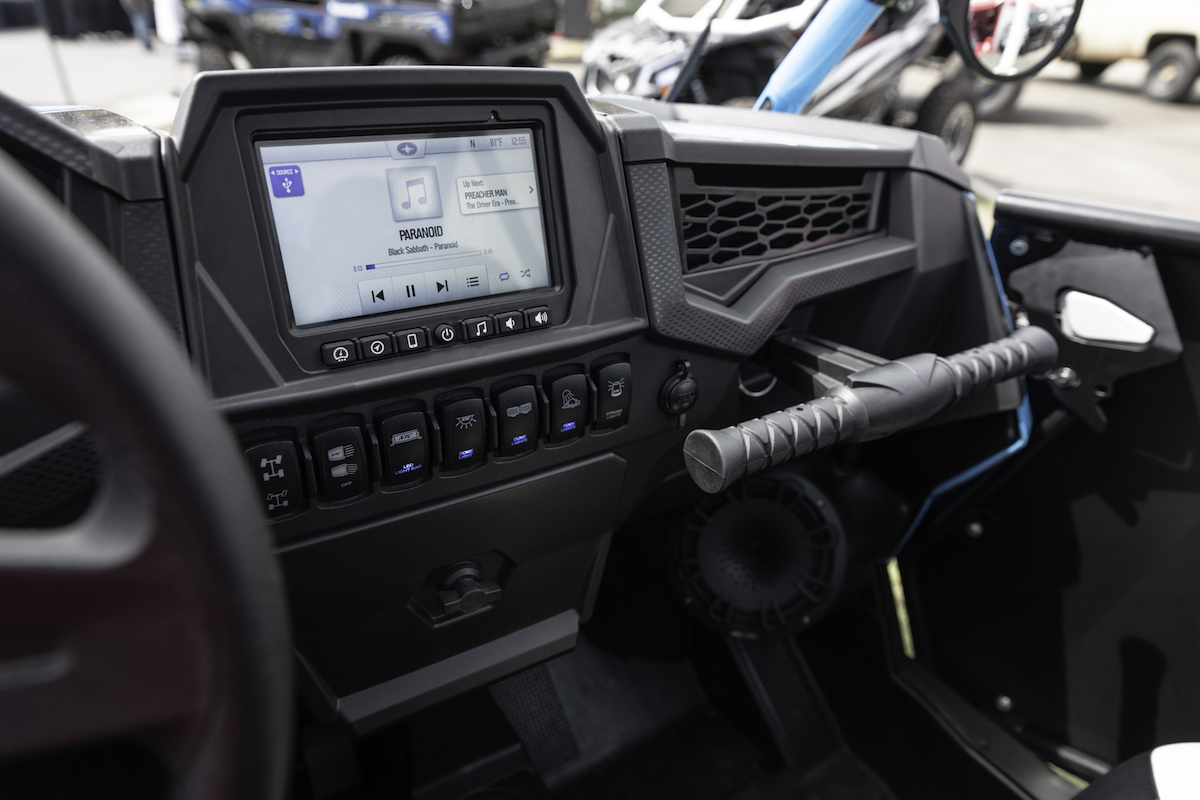

Integration with RIDE COMMAND, a high-tech source unit with an off-road display that acts as the hub and integrates your phone, GPS, audio, and communication systems. The actual RIDE COMMAND source unit is NOT INCLUDED.

Speaker Features

The front speakers are meticulously engineered to fit in the RZR kick panels. The entire system utilizes the MB Quart compression horn technology. (See inside here). This design assures that the system will be louder and better sounding than anything else on the trails. The rear (Pod) speakers are the exact speaker as the front, but mounted in a pair of versatile enclosure with the included swivel mounts for perfect alignment to the listener (regardless of the roll cage angle).

Amplifier Features

The RZR system is powered by the NA2 series of amplifiers. The stereo amplifier is operating in 2 ohm mode for maximum volume for all 4 speakers (front and rear pods).

Subwoofer Features

400 Watt Specific 10 inch Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, RZR ported glovebox Subwoofer Enclosure, powered by the 400 Watt High Efficiency Class D amplifier.

Mount / Harness

Plug and Play Harness. Waterproof Connectors with premeasured wires. No guesswork and no installation mistakes.

Time and Tools

Standard hand tools are required. See the manual for time on each of the different components.

Supporting Document

Download
