4 x 80 Watt Compact Powersports Amplifier
Four Channel, 320 watt NA2 Powersports amplifier
Four Channel, 320 watt NA2 Powersports amplifier
$319.00
| Colour | Black |
|---|---|
| Warranty | 2 Years |
| Amp Class | Full Range Class D |
| Amp Total Channels | 4 |
| Amp Max Power (watts) | 320 |
| Amp Power @ 2 Ohm (ch x watts) | 4 x 80 |
| Amp Power @ 4 Ohm (ch x watts) | 4 x 40 |
| Amp Variable High Pass Crossover 12dB per Octave | CH1 & CH2: Switched Full/HPF, CH3 & CH4: Switched Full/HPF |
| Amp Variable Low Pass Crossover 12dB per Octave | – |
| Amp Bass Boost | 0-12dB @ 45Hz |
| Amp Variable Voltage | 0.2-9V |

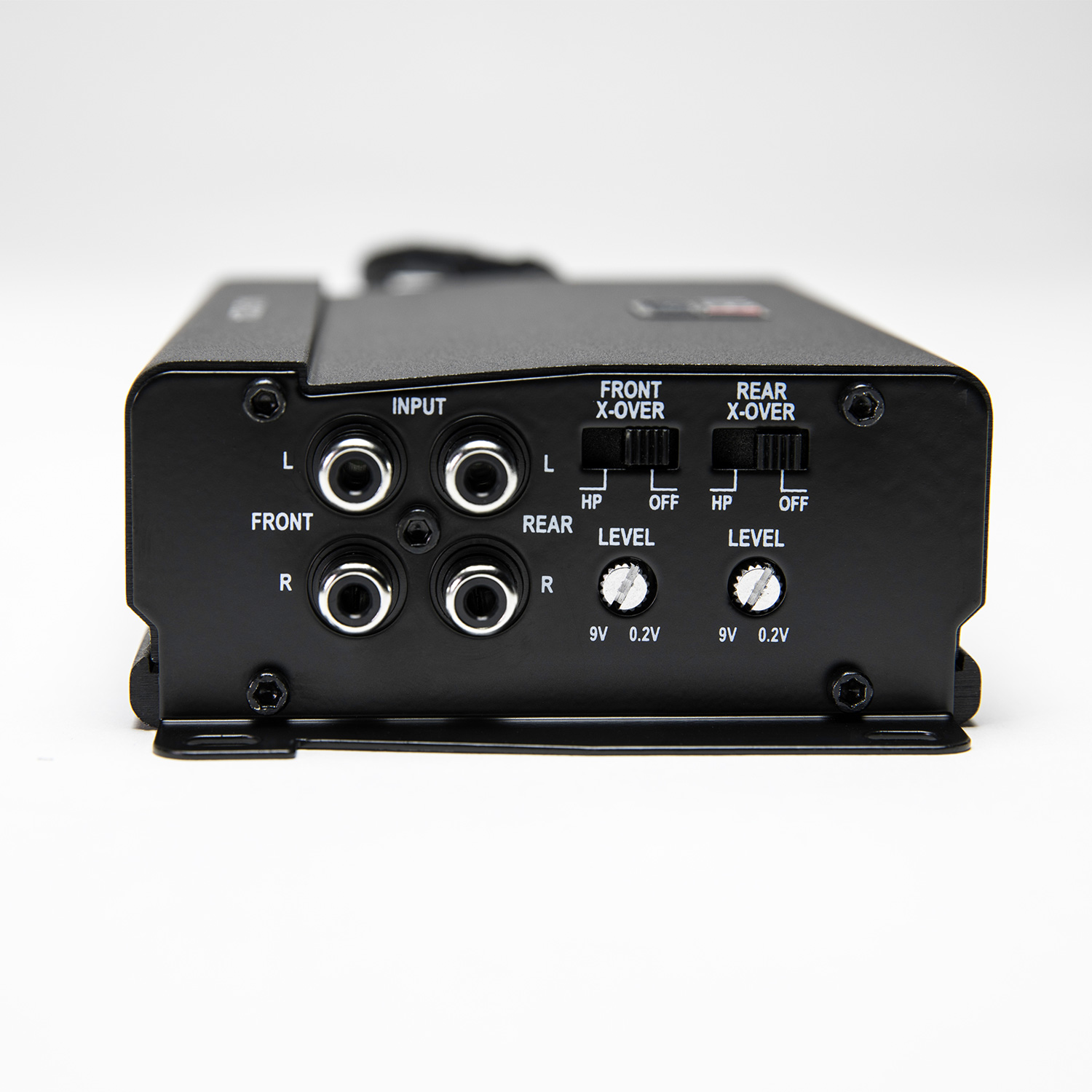

| RCA Inputs | 2 Pair RCA Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant. |
| Operation Mode | Four channel operation: Flexible installation allows this amplifier to run in four channel or bridged mono mode. |
| Crossover Type | Switched OFF / HP: Complete control of amplifier signal, essential when using two or more amplifiers. |
| Class / Topology | Full Range Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a very small heatsink. |
| Output Device Technology | PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. |
| Heat Sink | Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration. |
| Power Supply | Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. |
| Output Connections | Quick Disconnect Wires, RCA Connections: Quickly remove amplifier when you are putting machine up for the winter of as a security precaution. |
| Connection Type | Nickel-plated connections: Nickel plated corrosion resistant connections. |
| LED System Protection Circuitry Diagnostics | Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. |
