SKU: MBQ-GMRV71 Category: Accessories

$749.00

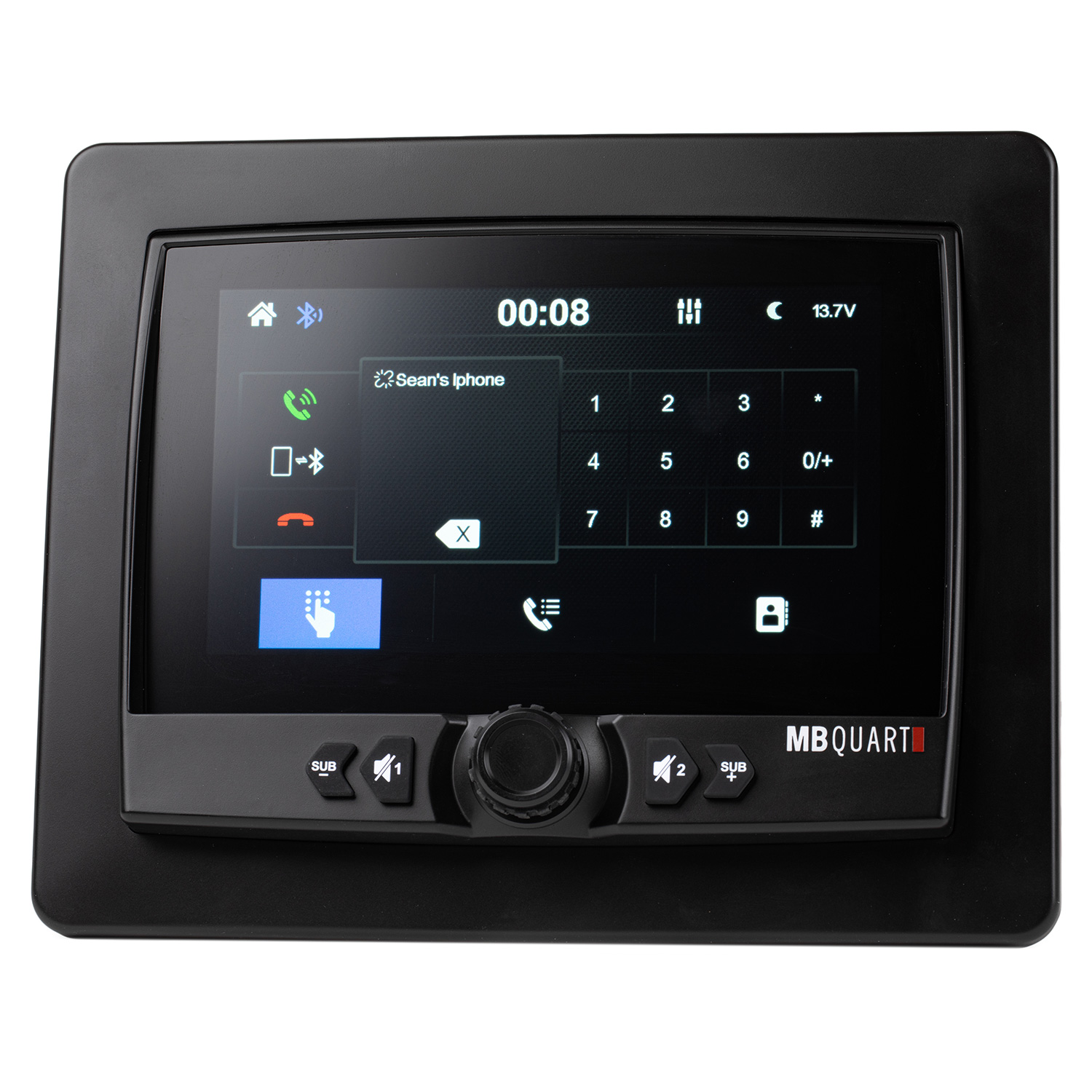

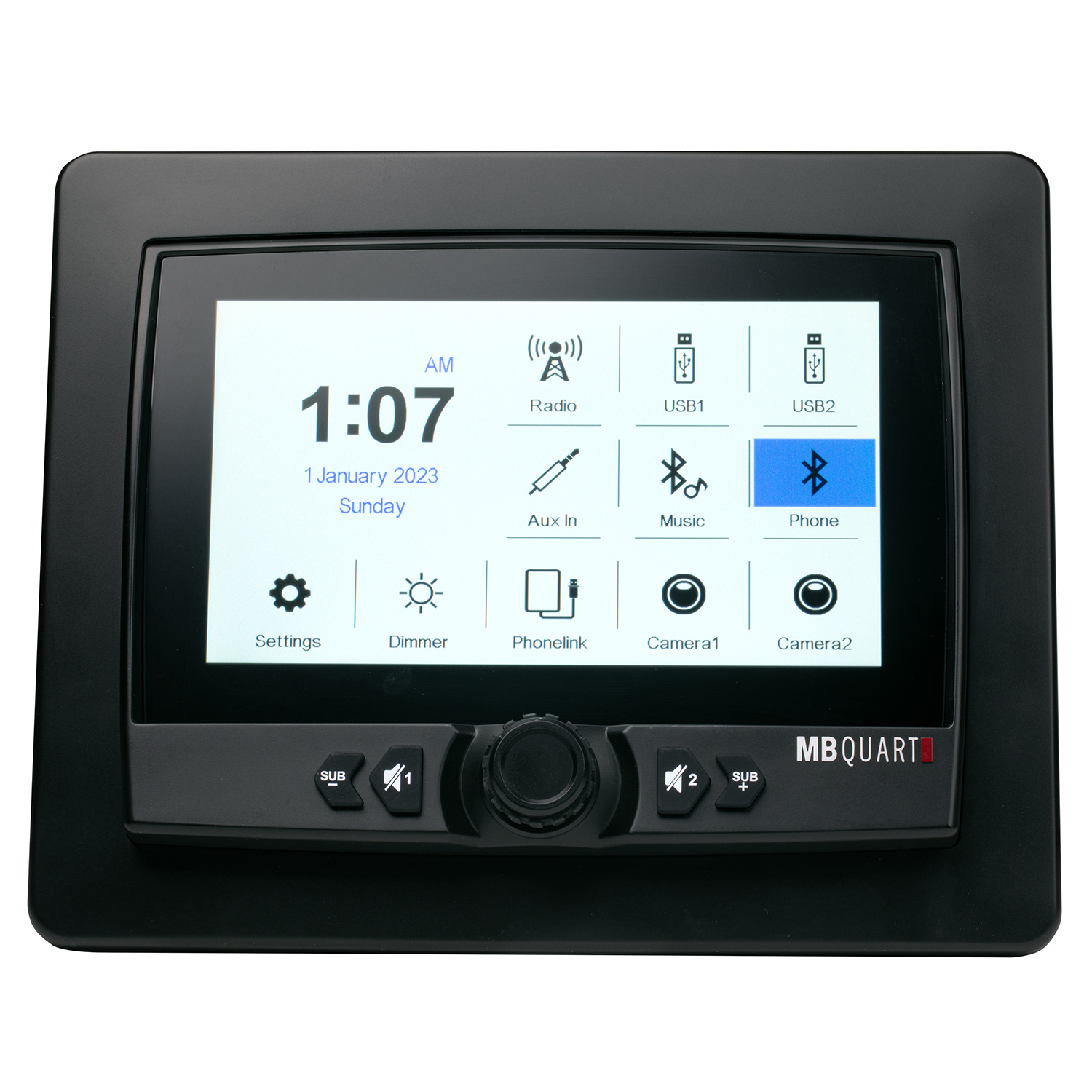

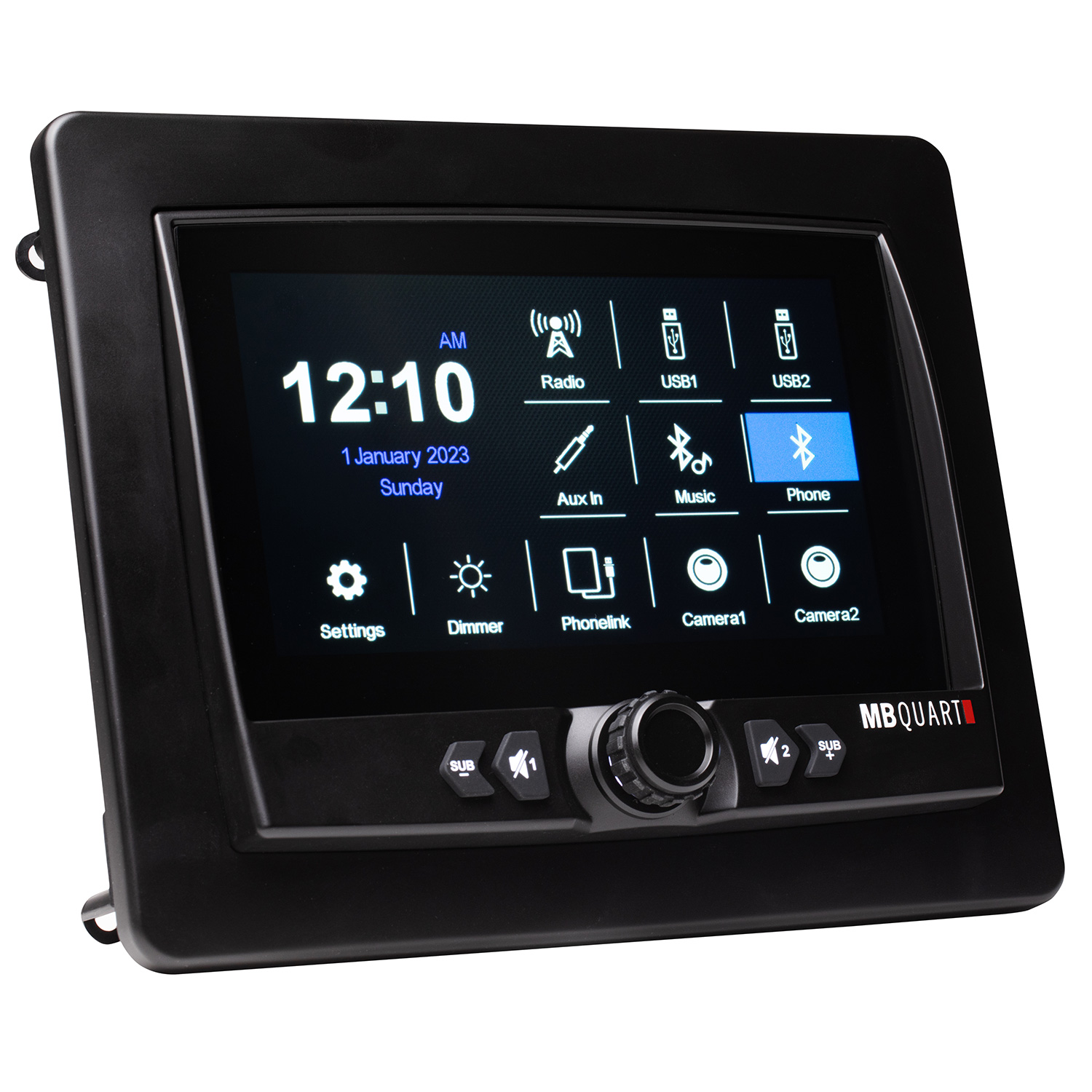

MB Quart GMR7V1 7-Inch waterproof touchscreen source unit features Apple CarPlay, which brings more control and integration with your iPhone. This unit also includes a built-in auxiliary switching system, RGB lighting controller, AM/FM/WB/Bluetooth, dual zone audio control, dual video inputs, one video output, two USB inputs, one aux input, and pre-amp outputs.

Color

Black

Warranty

2 Years

IPX Rating

IPX67

Additional Details

Preamp Output Voltage: 4 volts
Dual Zone Capability between Preamp Outputs and Built-in Power
Independent Subwoofer Level Control with Selectable Low Pass Filter
10-Band Graphic EQ (64, 150, 250, 500, 1K, 2K, 4K, 6K, 10K, and 16K)

Compatible Vehicle Fitment

Universal

Marine Grade Protection / IPX Rating

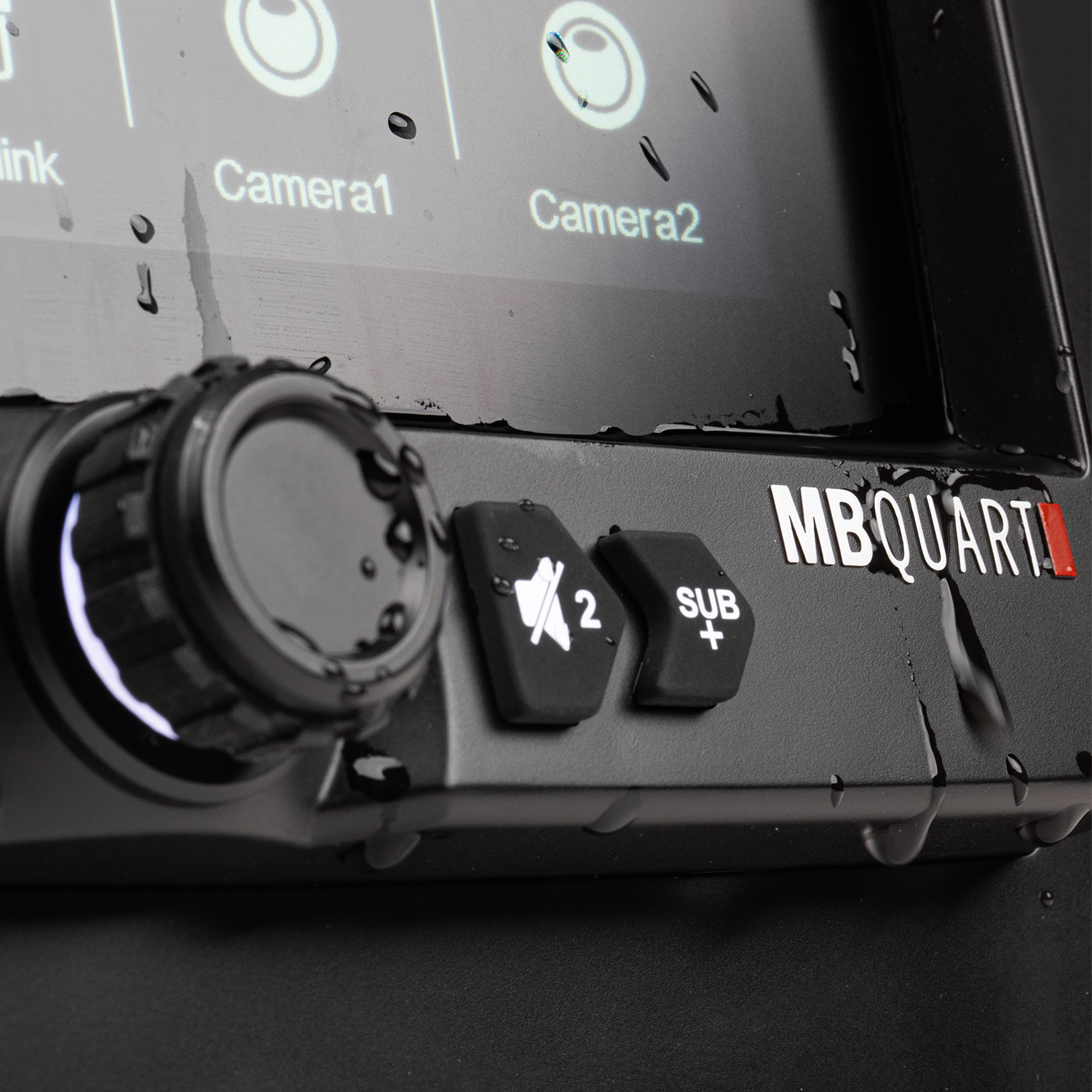

Meets or exceeds IPX67 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snow proof or shockproof. Built to handle the outdoors.

Apple Control

Wired Apple CarPlay

Source Type

AM/FM/WB/Bluetooth allows all access to radio stations and content from Bluetooth enabled devices.

Input Types

Bluetooth, RCA, USB: Nearly nothing the device cannot play.

Control Buttons

Unit has a master knob, zone mute buttons, sub level buttons, and a full touchscreen 7-inch display.

Bluetooth Connect

Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the source unit without a complicated pairing process.

Secure Simple Pairing™

Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.

Quick-Pair™

No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "GMR7V1" from your Bluetooth menu and you are connected, QUICKLY.

Control Method

Unit is adjusted by a master knob, 4 control buttons, and a 7 inch touchscreen panel.

AM/FM Tuner Presets

AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations each.

Frequency Range

USA Frequency: FM87.5 – 107.9MHz / AM530 – 1710kHz

RDS Information

Yes

Weather band

Includes built-in weather band radio.

NOAA NWR Weather Band Frequency: Preset (162.400MHz, 162.425MHz,
162.450MHz, 162.475MHz, 162.500MHz, 162.525MHz, 162.550MHz)

Video input

Two video camera inputs via a RCA style connector (No Audio)

One video output via a RCA style connector (No Audio)

Video Input Trigger

Two ground wire triggers, one for each video input.

Additional Inputs

1 Pair (Aux), 1 Composite Video (Camera), 1 Microphone Input

Album Art

Yes

Dual Audio Zone Capability

Control volume in two different areas independently, such as passenger area and tower speakers.

USB / Apple / Charging Port

Two USB ports – USB 1(Gray) For Music. USB 2(Black) for iPhone.

Bluetooth Version

Version 5.0

Main Connector Type

MOLEX connector for simple installation and removal of unit when needed.

Media Screen

7-inch high-contrast touchscreen display

Supporting Document

Download
