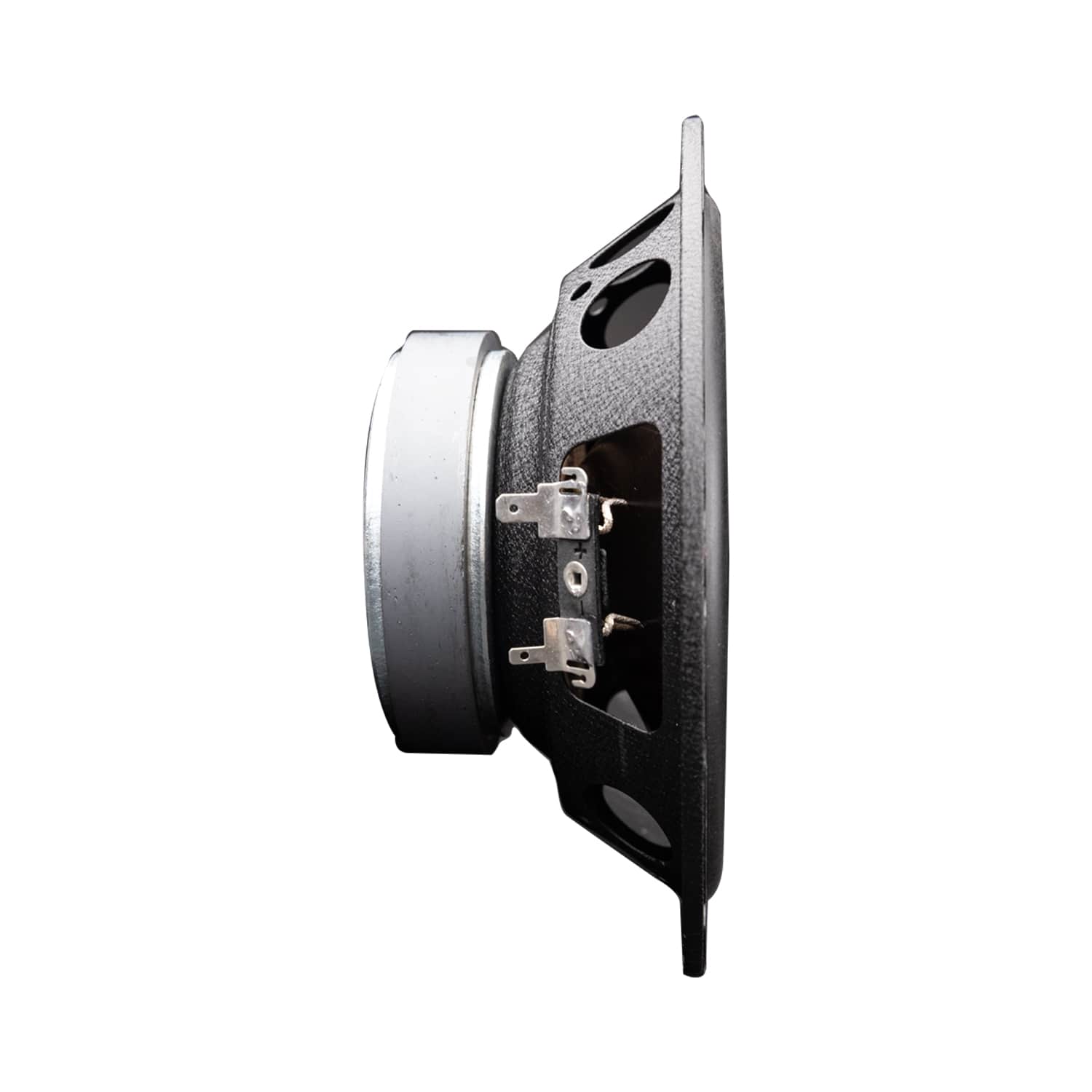

MB Quart Discus 6.5-inch component car speaker system with aluminum inverted dome tweeters and butyl rubber surrounds.

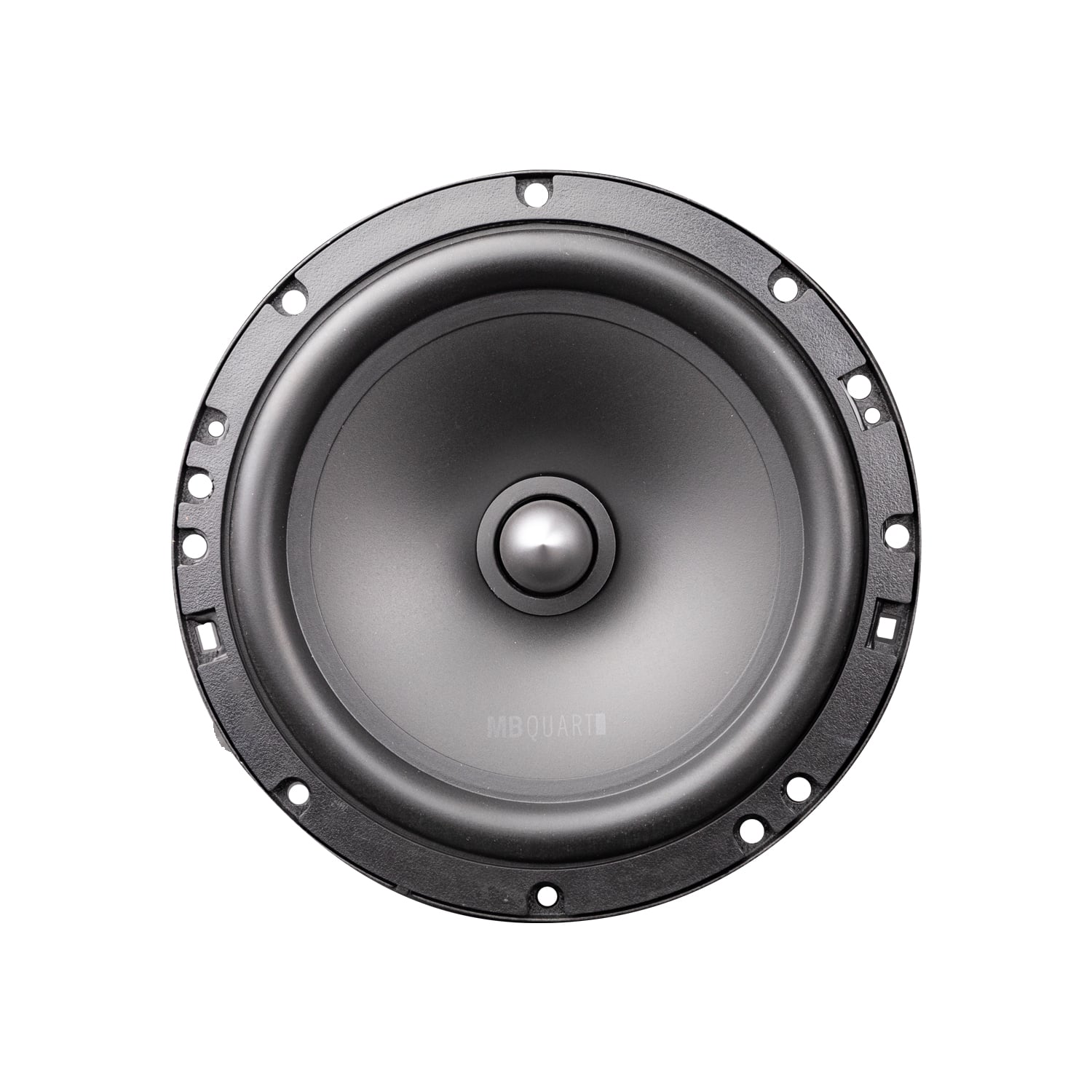

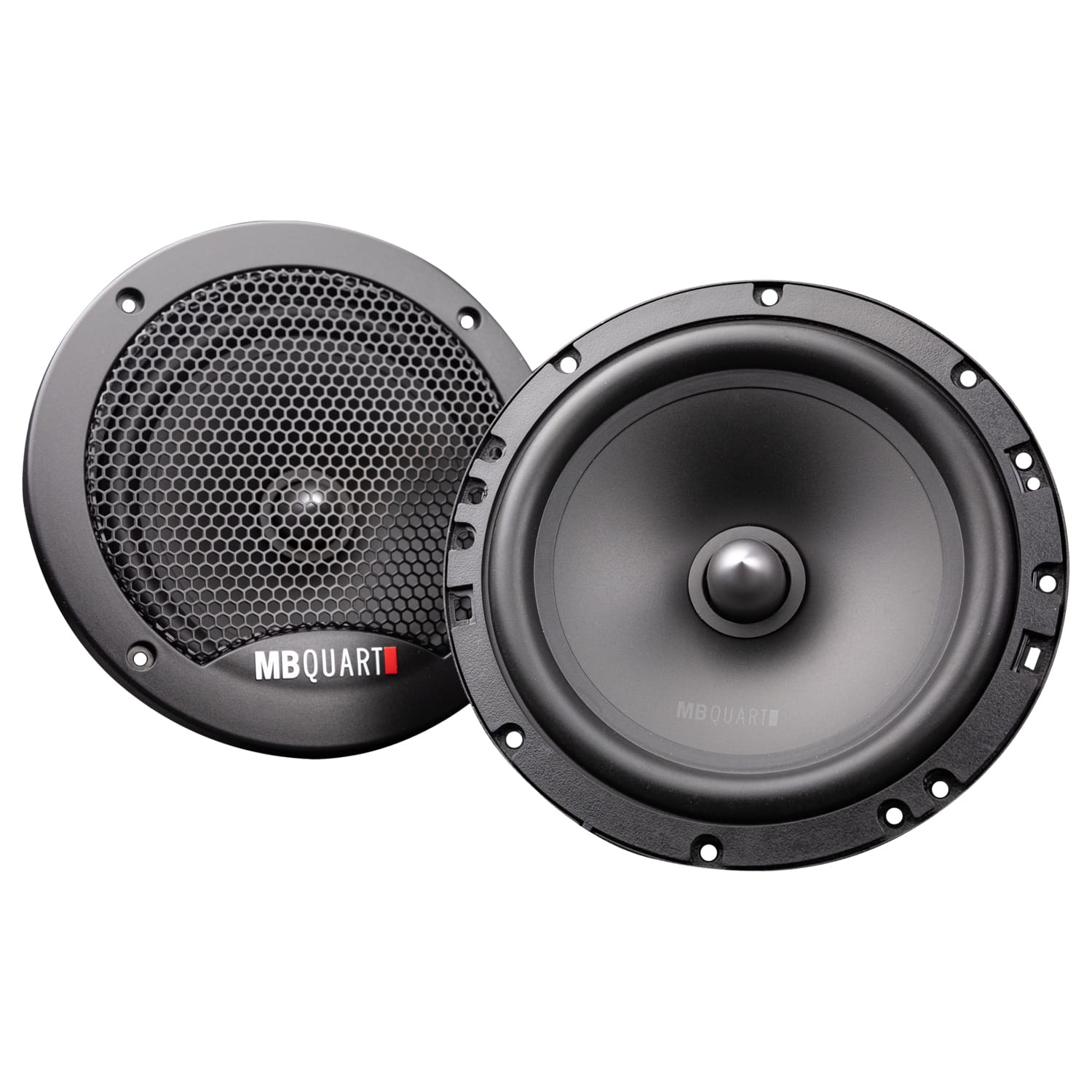

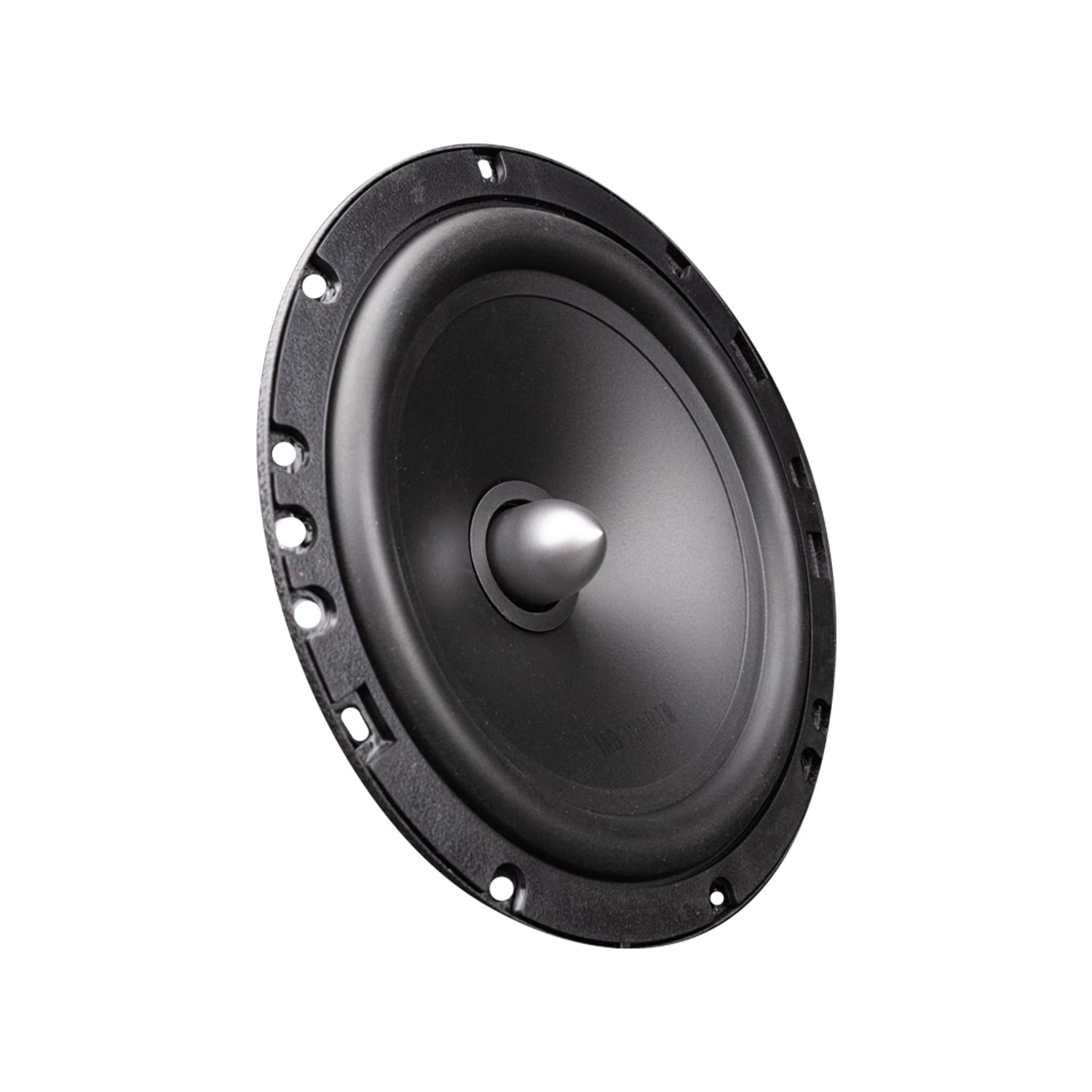

MB Quart Discus 6.5 inch component car speaker system
MB Quart Discus 6.5 inch component car speaker system
$229.00
| Series | Discus |
|---|---|
| Colour | Black |
| Warranty | 2 Years |
| Speaker RMS Power Handling (watts) | 70 |
| Speaker Peak Power Handling (watts) | 140 |
| Speaker Impedance (ohms) | 4 |
| Speaker Frequency Response | 55Hz-20kHz |
| Speaker Sensitivity | 88dB |
| Speaker Crossover Slope | 12dB/Octave |
| Speaker Mounting Diameter / Cut Out (in) | 5.59 |
| Speaker Outside Diameter (in) | 6.5 |
| Speaker Mounting Depth / Chassis Depth (in) | 2.12 |
| Speaker Size (in) | 6.5 |

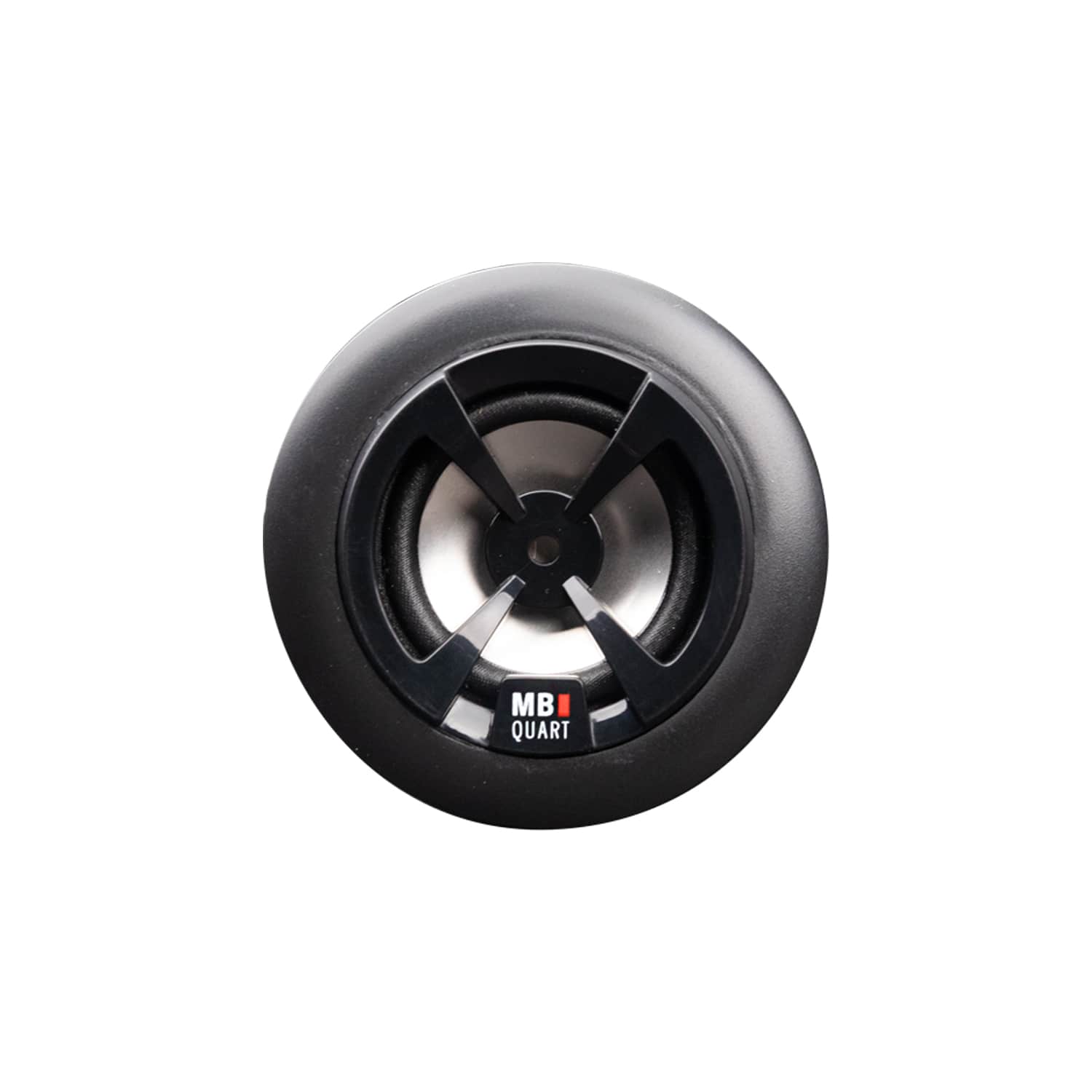

| Tweeters | Aluminum inverted dome tweeters deliver great sound with increased reliability. |

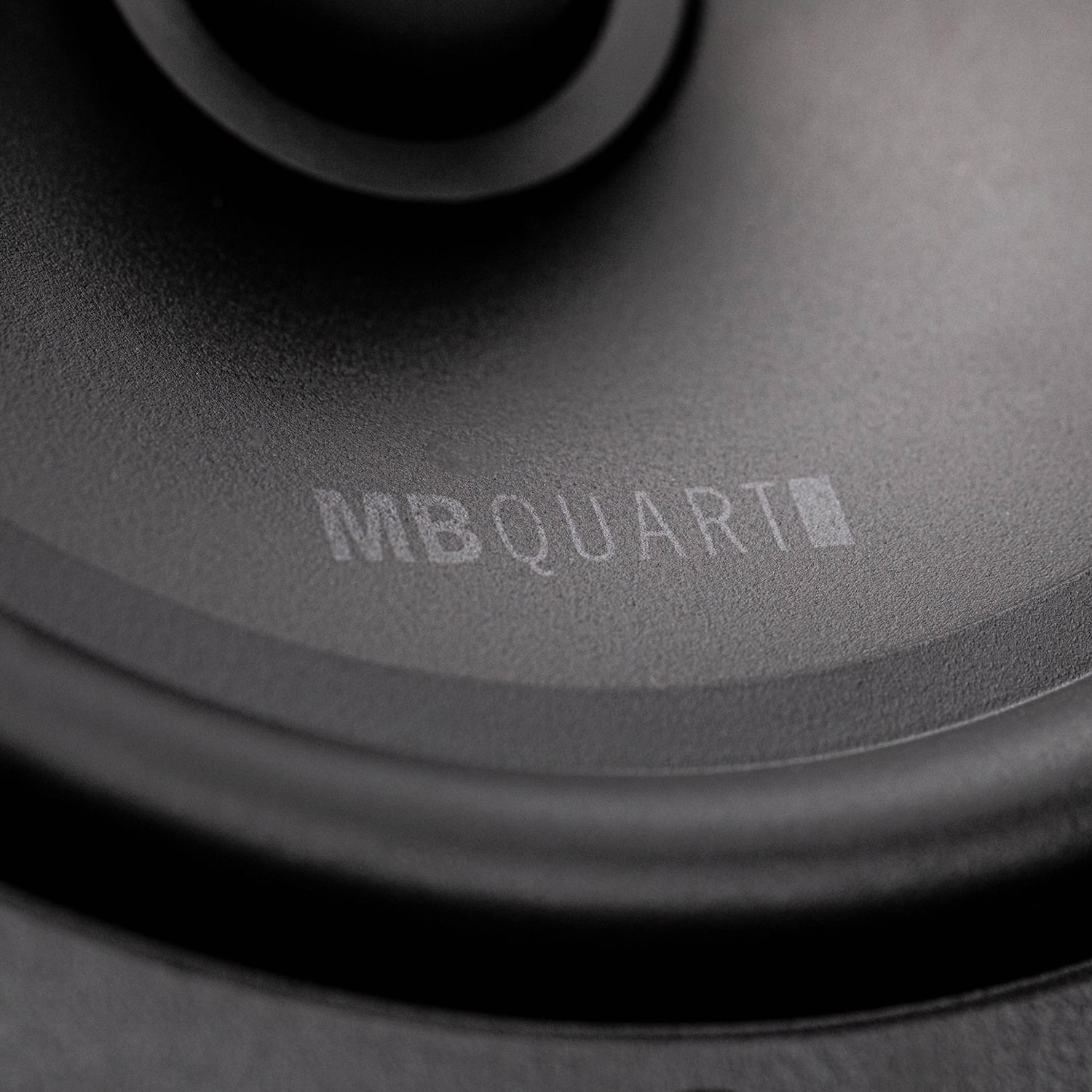

| Cone Material | Lightweight thermal-formed polypropylene cones enable faster midrange response. |
| Surround / Cone Coupling | Butyl rubber surrounds provide durability and deeper mid-bass impact. The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather. |
| Voice Coil / Former Assembly | Pure Copper voice coil creates a strong magnetic field with a very thin extrusion. Kapton voice coil former is lightweight and efficiently dissipates heat. |

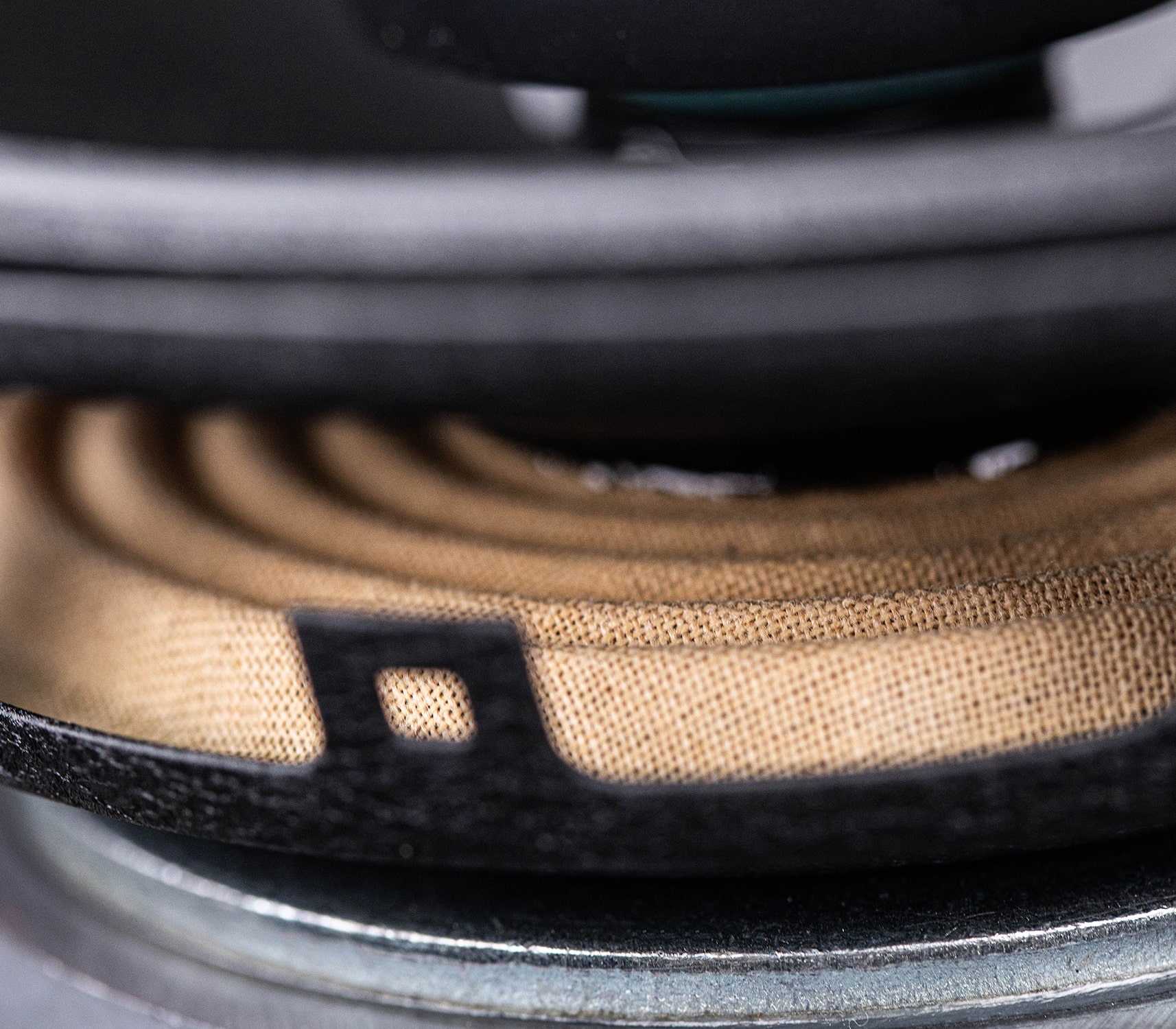

| Spider | Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process. |
| Cooling System | Over-coil cooling system allows air exchange over the voice coil through the spider. |

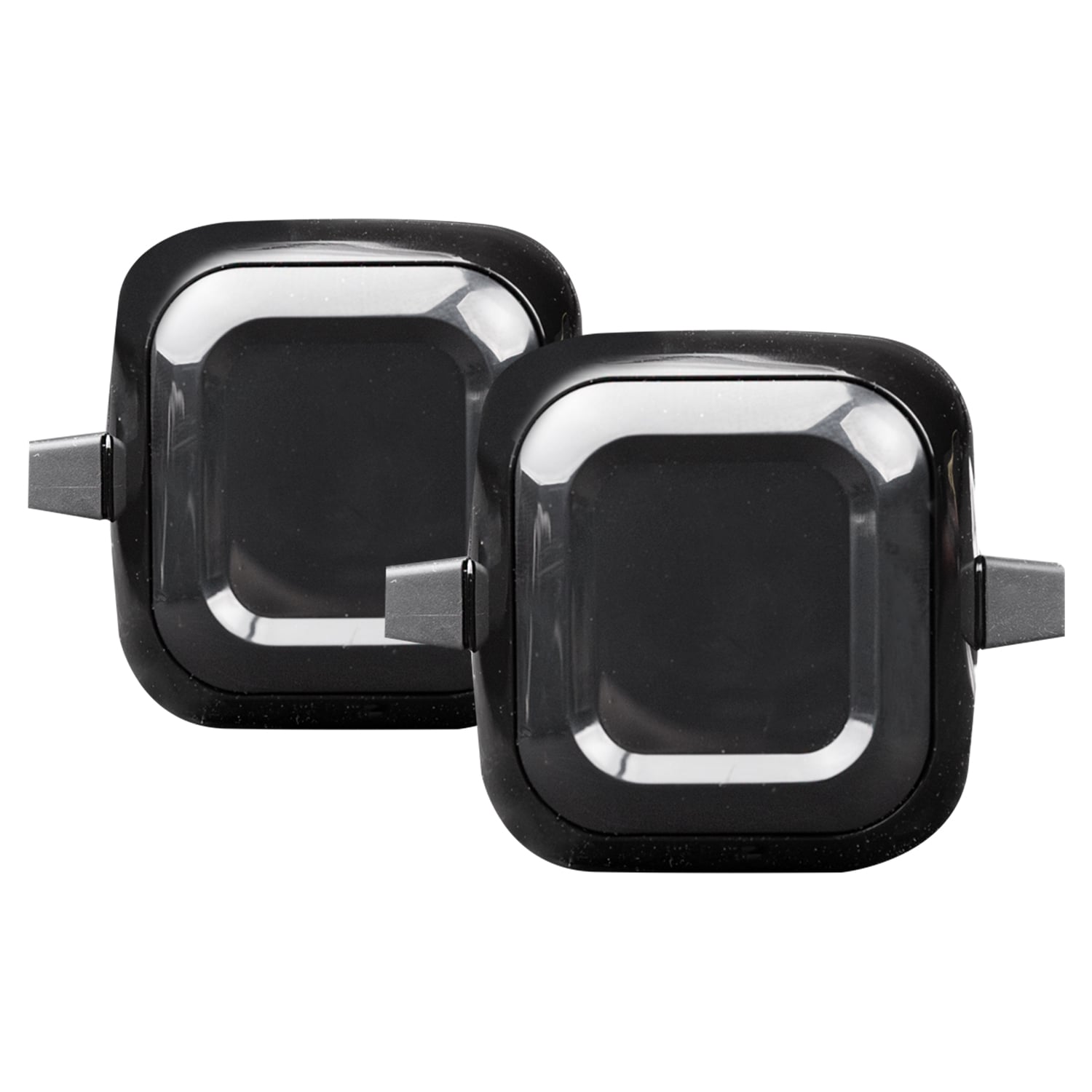

| External Component Crossover | External Passive Cauer topology Butterworth filter crossover for a smooth transition of frequencies from midrange/midbass to the tweeter element designed into a compact crossover housing that can be easily hidden in the installation. |
| Frame | Heavy gauge progressive-die stamped steel frames for ultimate rigidity. |

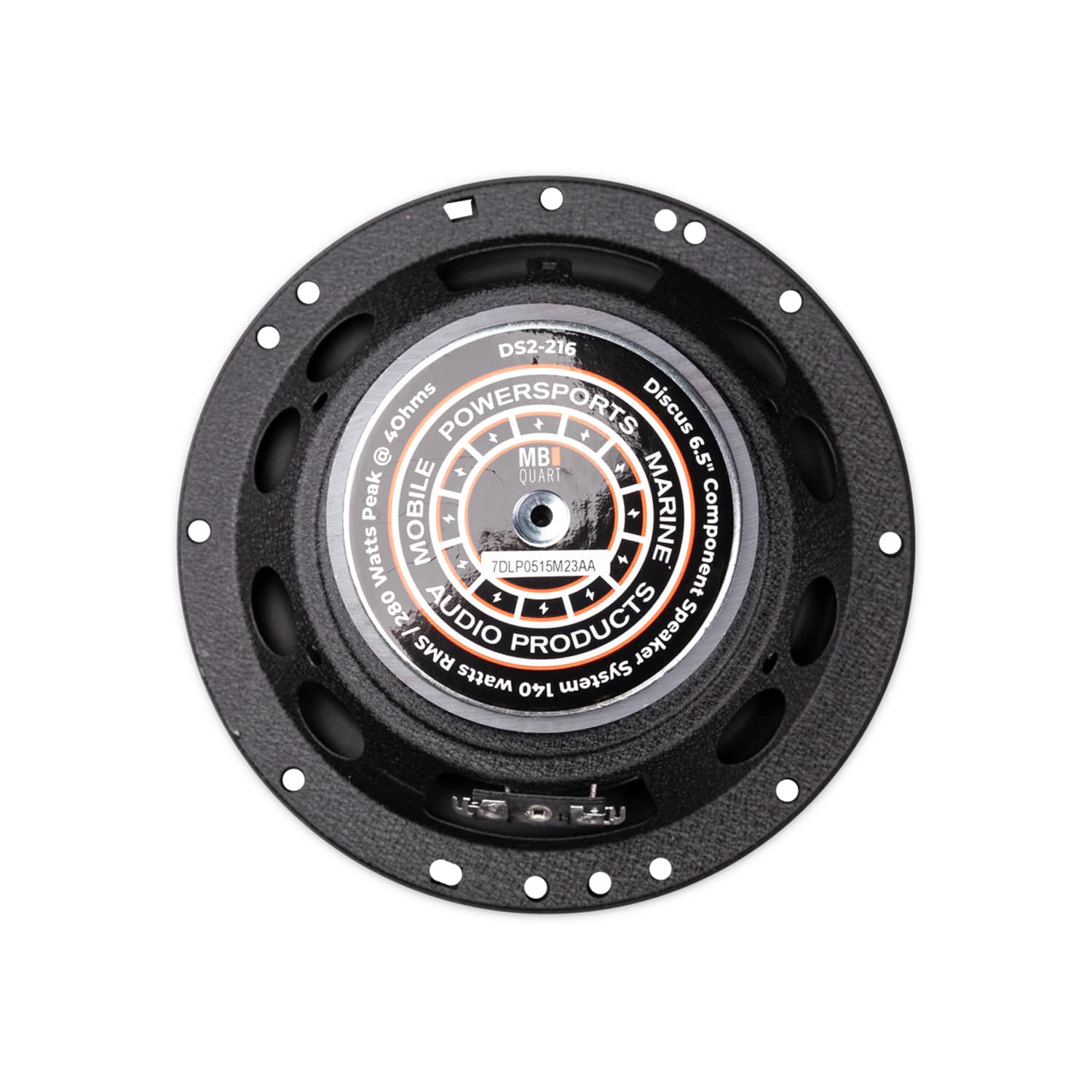

| Motor | Ferrite magnet motor creates a strong magnetic field while remaining small enough to fit nearly every application. |
| Connectors | Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications. |
