MB Quart QA1-900.6D Q-Series 900 watt six channel DSP amplifier that allows complete tuning control from your PC, iPhone, or Android device for a perfectly dialed-in sound experience.

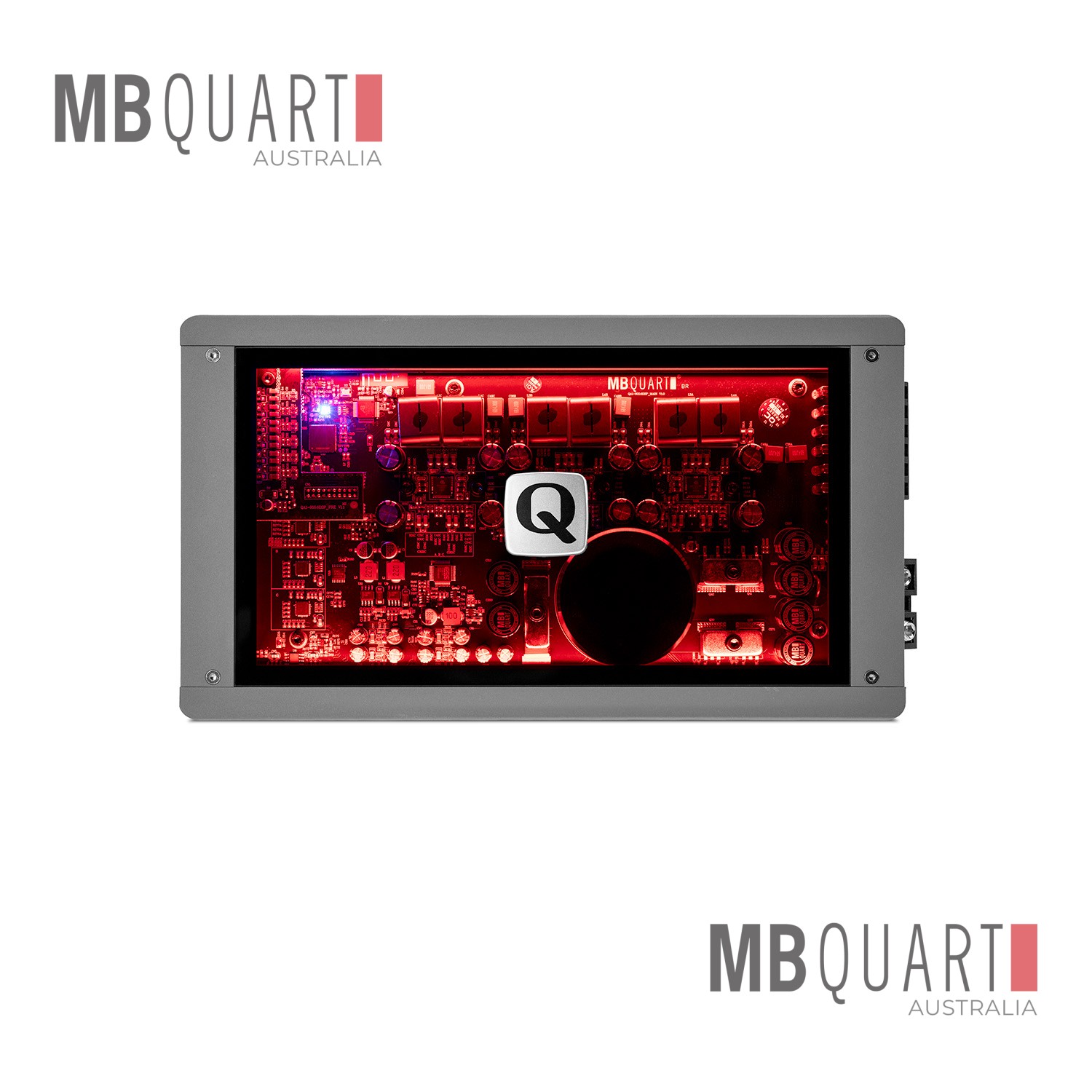

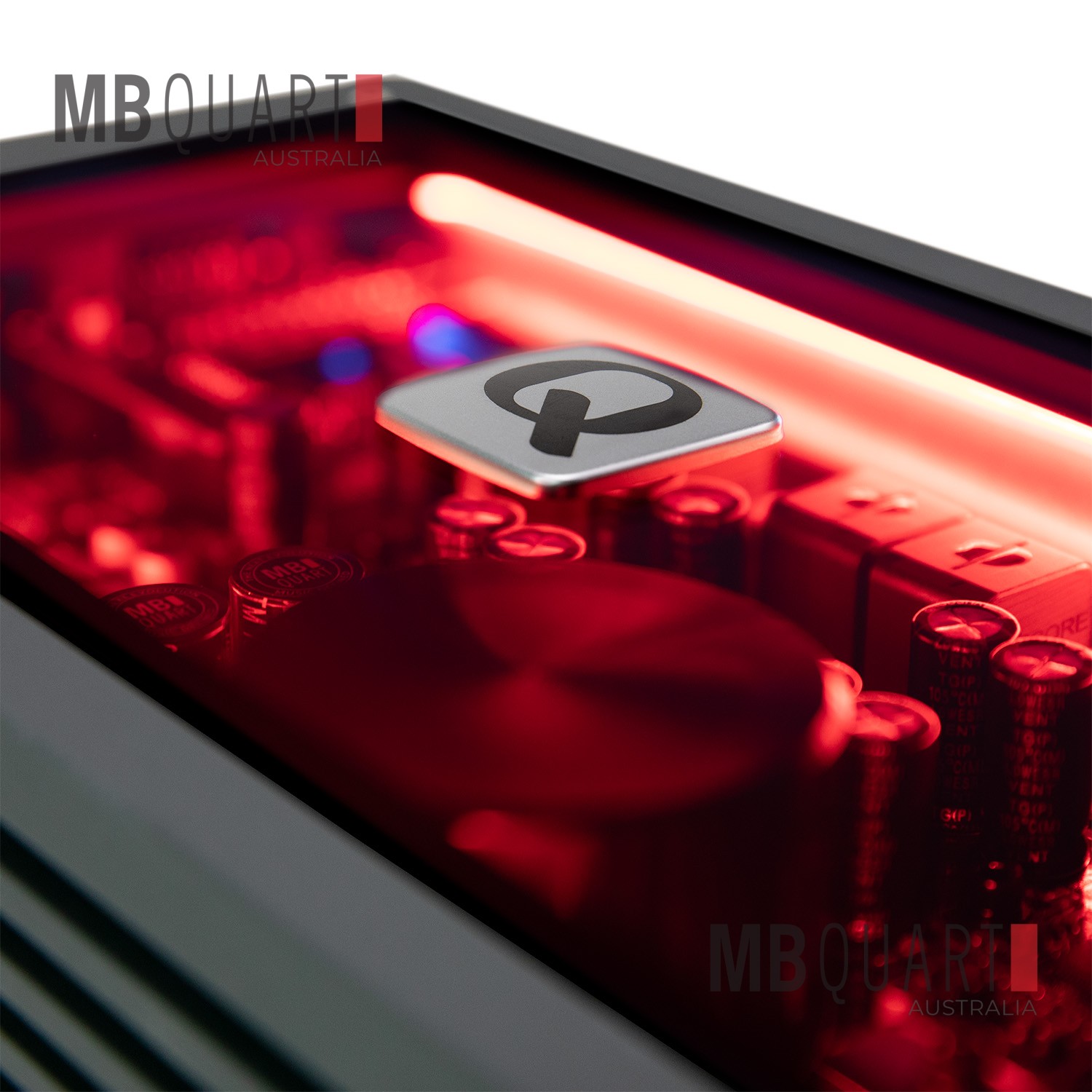

Through-glass top design with red LED accent lighting.
MB Quart QA1-900.6D Q-Series 900 Watt 6 Channel DSP Amplifier
MB Quart QA1-900.6D Q-Series 900 Watt 6 Channel DSP Amplifier
$1,199.00
| Color | Grey |
|---|---|
| Warranty | 2 Years |
| Compatible Vehicle Fitment | universal |
| Amp Class | Full Range Class D |
| Amp Total Channels | 6 |
| Amp Max Power (watts) | 900 |
| Amp Power @ 1 Ohm (ch x watts) | N/A |
| Amp Power @ 2 Ohms (ch x watts) | 6 x 150 |
| Amp Power @ 4 Ohms (ch x watts) | 6 x 90 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | 3 x 300 |
| Amp Crossover | DSP: 20Hz-20kHz |
| Amp Variable High Pass Crossover 12dB per Octave | DSP: 20Hz-20kHz |
| Amp Variable Low Pass Crossover 12dB per Octave | DSP: 20Hz-20kHz |
| Amp Tone Control / Parametric EQ | Yes – DSP/Parametric/Graphic |
| Amp Bass Boost | DSP: 20Hz-20kHz |
| Amp Subsonic Filter | DSP: 20Hz-20kHz |
| Amp Phase Shift | DSP: 0-180º |
| Amp Variable Voltage | High: 1.4-14.5V, Low: 0.5-5.1V |
| Amp Signal to Noise | > 96dB |
| Amp Frequency Response | 10Hz -23kHz |
| Amp Total Harmonic Distortion (THD) | 1.0% |
| Amp Speaker Level Audio Inputs | Yes |
| Pre-amp Audio Outputs | Yes |

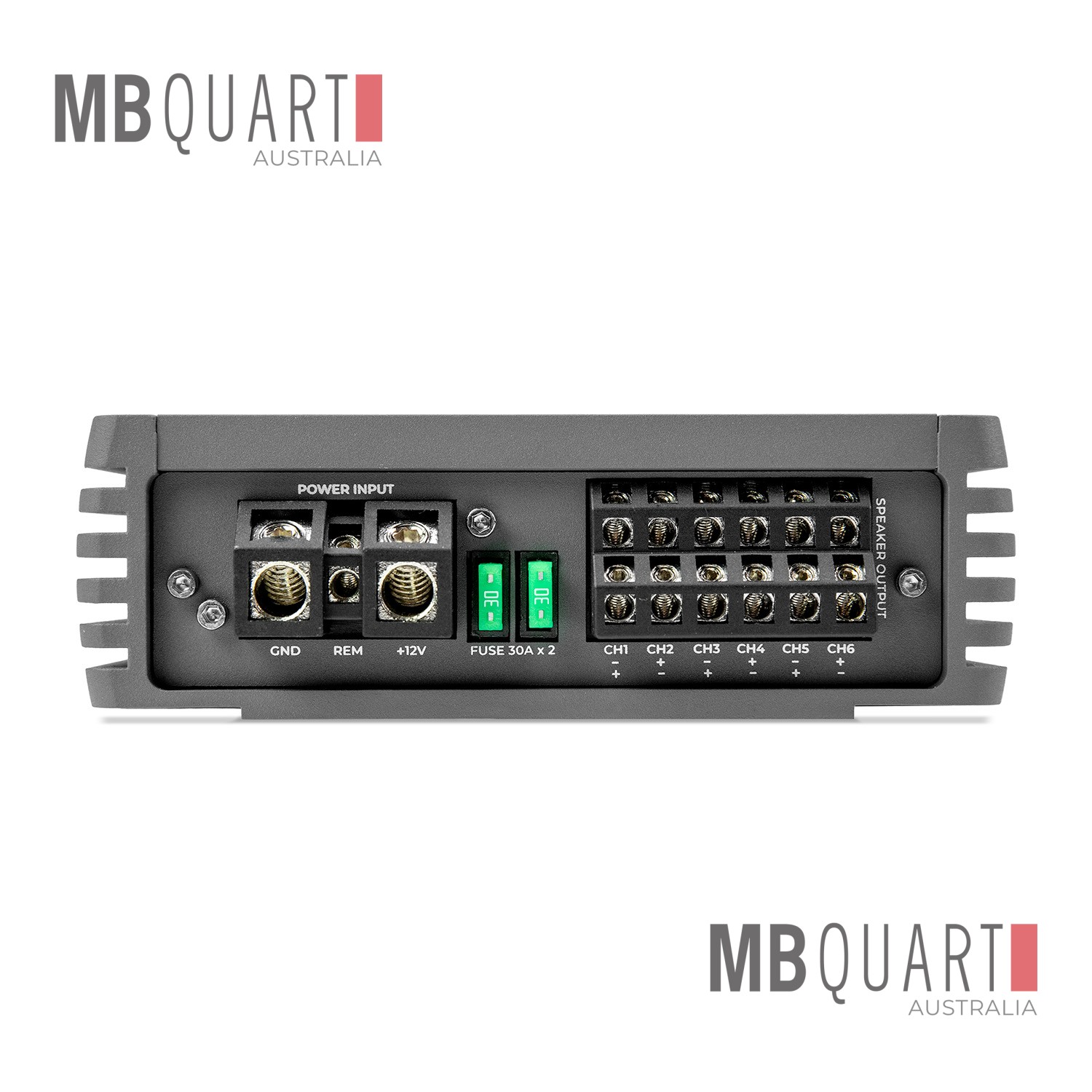

| Amp Power Terminal 12v/GND | 4 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | 2 x 30A Mini ATC |
| Low Noise Preamplifier Circuit | Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality. |

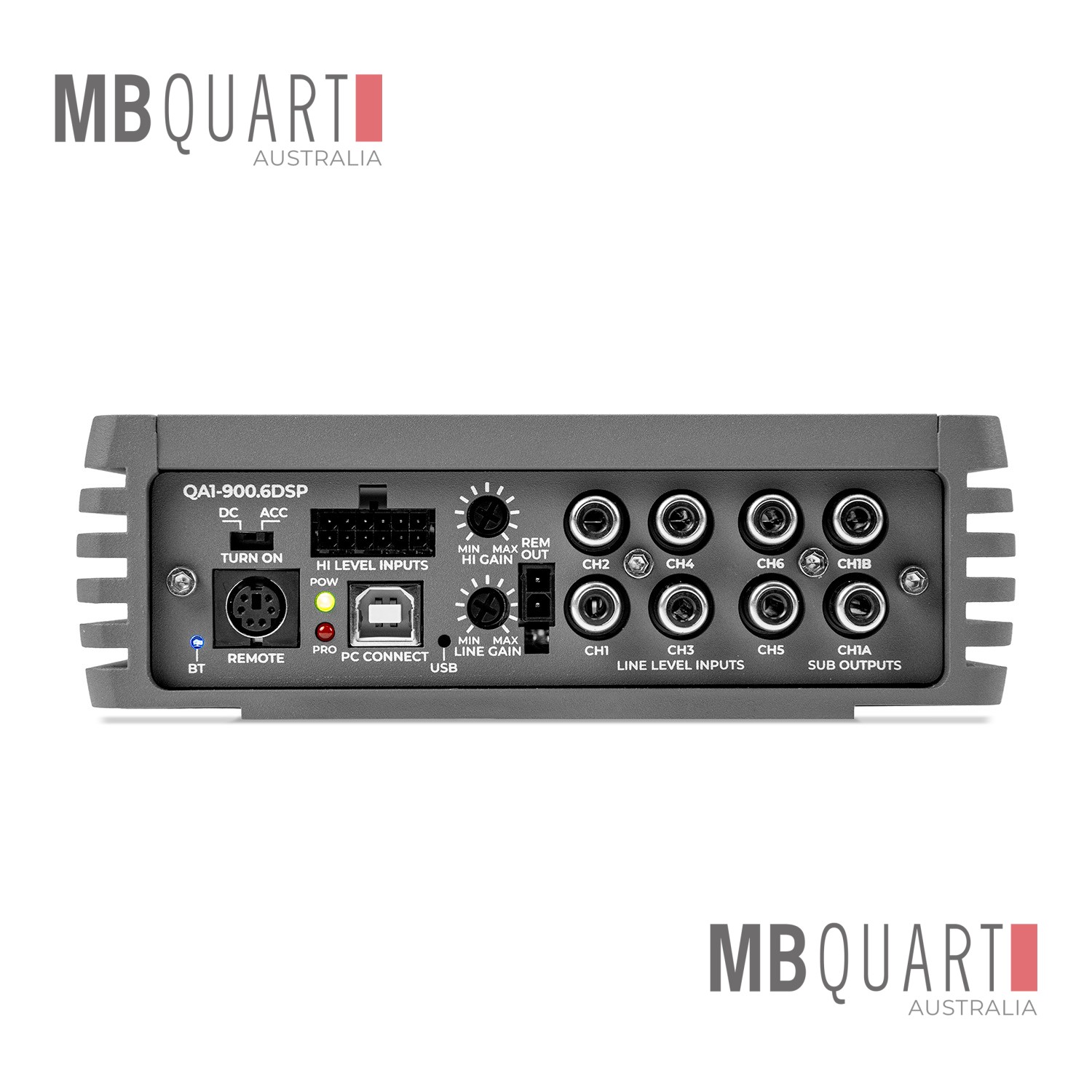

| RCA Inputs | 3 Pair RCA Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is corrosion resistant. |
| High Level Inputs | Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power. |
| Operation Mode | Six channel operation: Flexible installation allows this amplifier to run in six channel or bridged mono modes. |
| Crossover Type | Complete control of amplifier signal via the DSP PC/iPhone/Android applications. |
| Electronic Equalizer | DSP: Parametric(full variable customizing of freq)/Graphic(31 bands cant change the Freq) |
| Class / Topology | Full Range Class D: Highly efficient circuit topology which helps the amplifer provide high performance output |
| Output Device Technology | MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and provide high level of sound quality. |

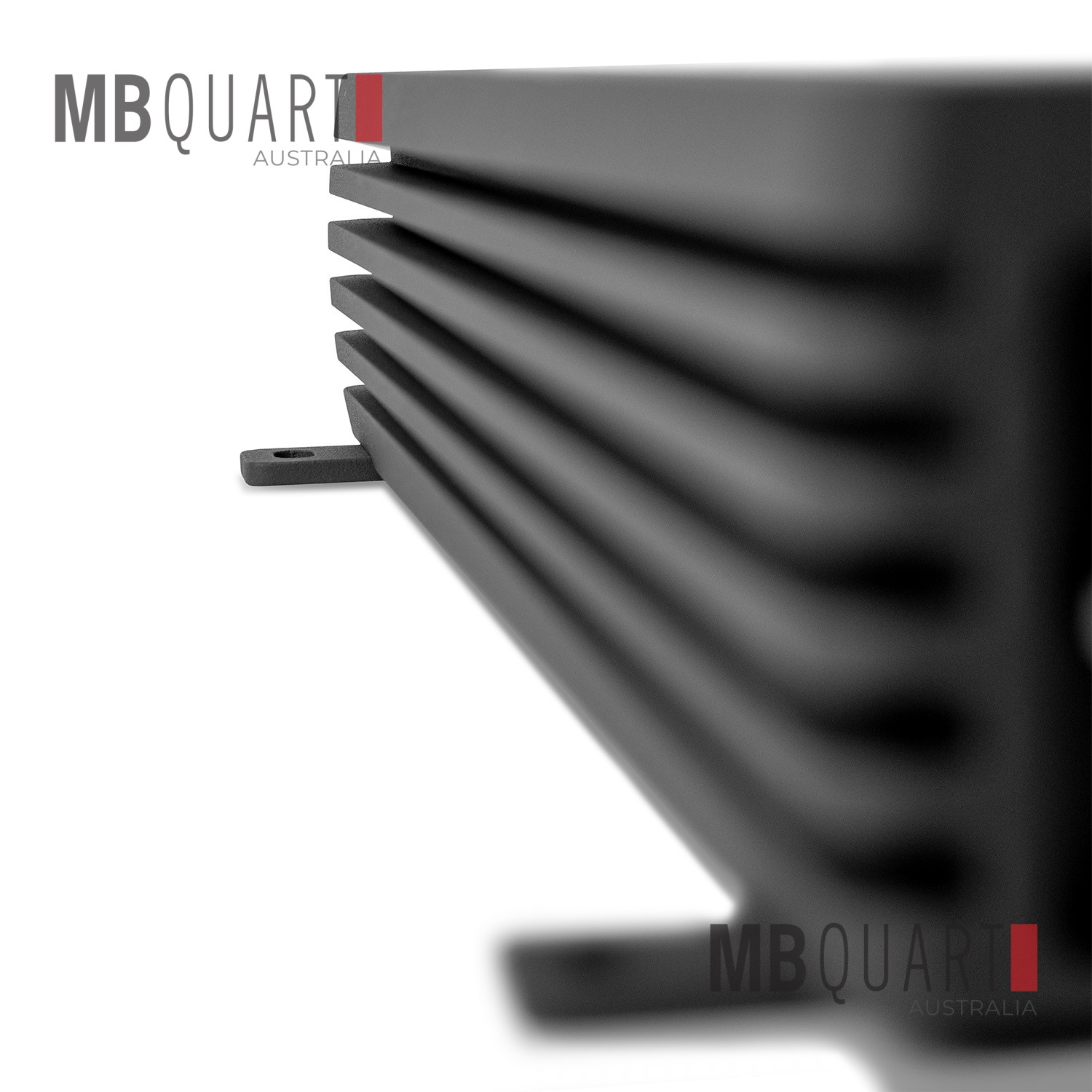

| Heat Sink | Extruded aluminum heat sink that is machined to it final shape allows the amplifer to run lower impedance for longer duration. |
| Power Supply | Q-series amplifiers use a MOSFET Pulse Width Modulation power supply that allows the amplifier to produce efficient power without taxing the electrical system. |
| Output Connections | Heavy duty output terminals allows for secure connection so electrical signal can pass into wiring and resist corrosion. |
| Connection Type | Nickel plated corrosion resistant connections. |
| Full-Range RCA Outputs for Signal Pass Through | One pair of RCA connectors, Ch1a & Ch1b output allow distortion free signal to be passed through this amplifier to feed that signal to a mono-block amplifier without the need for noise generating Y cables. |
| LED System Protection Circuitry Diagnostics | Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. |

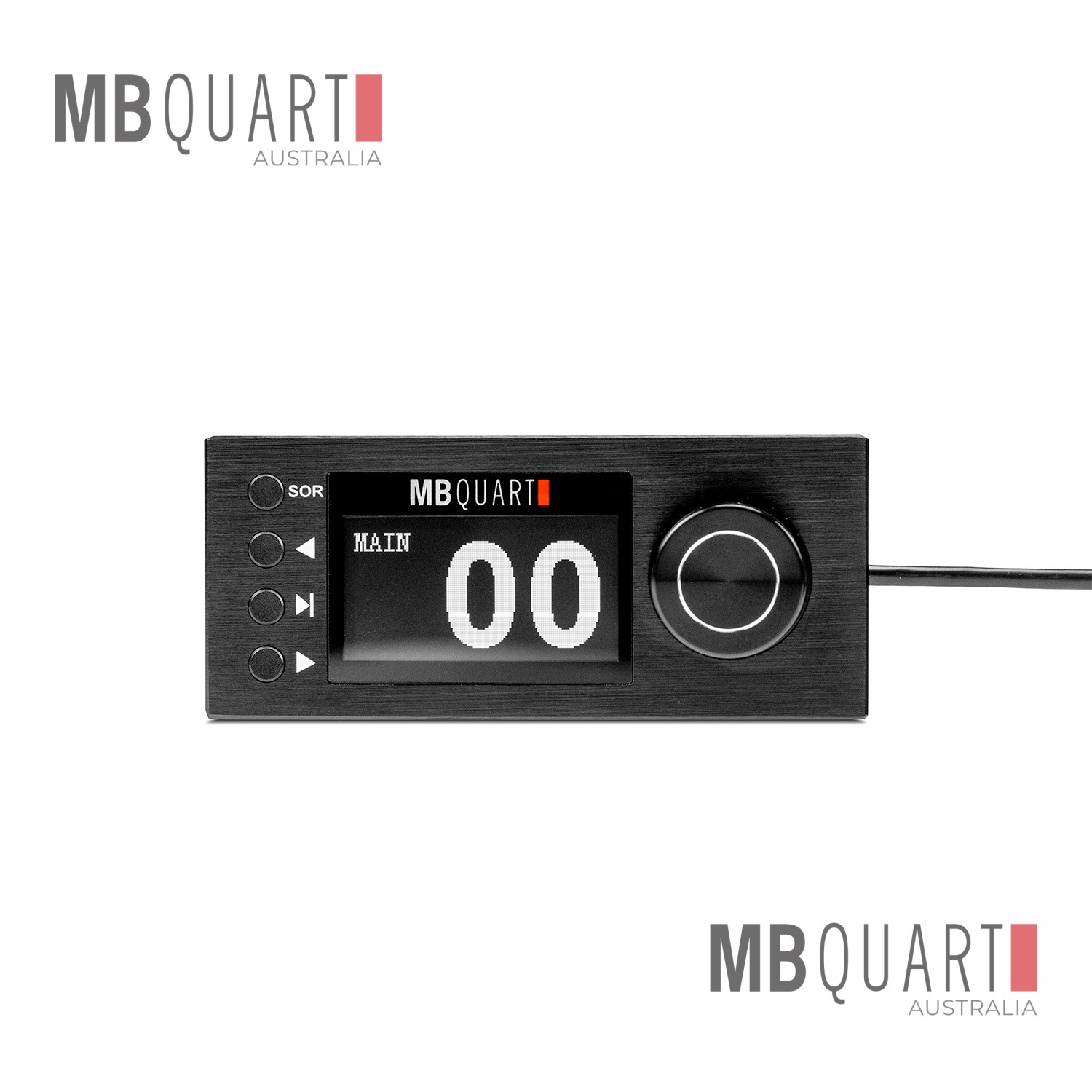

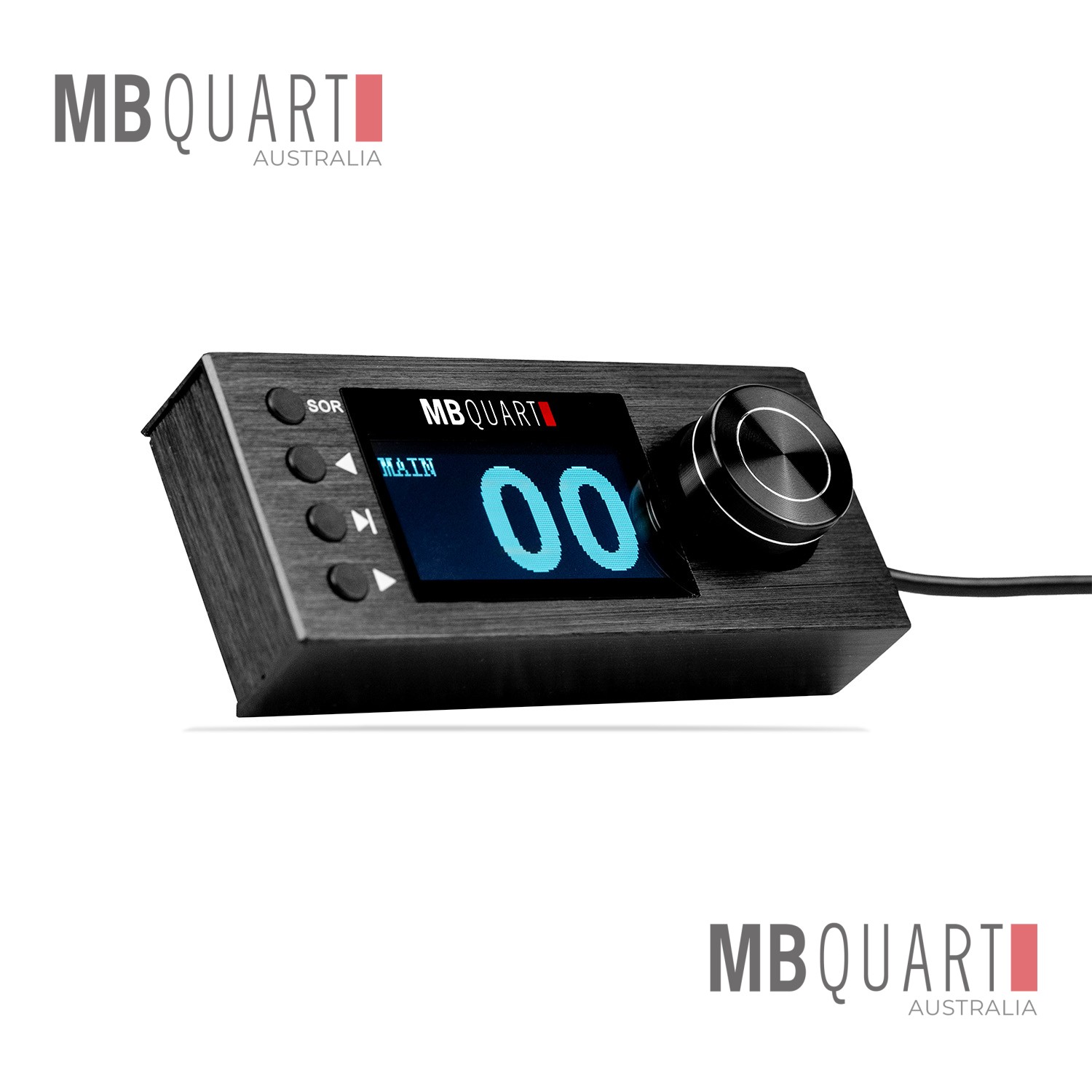

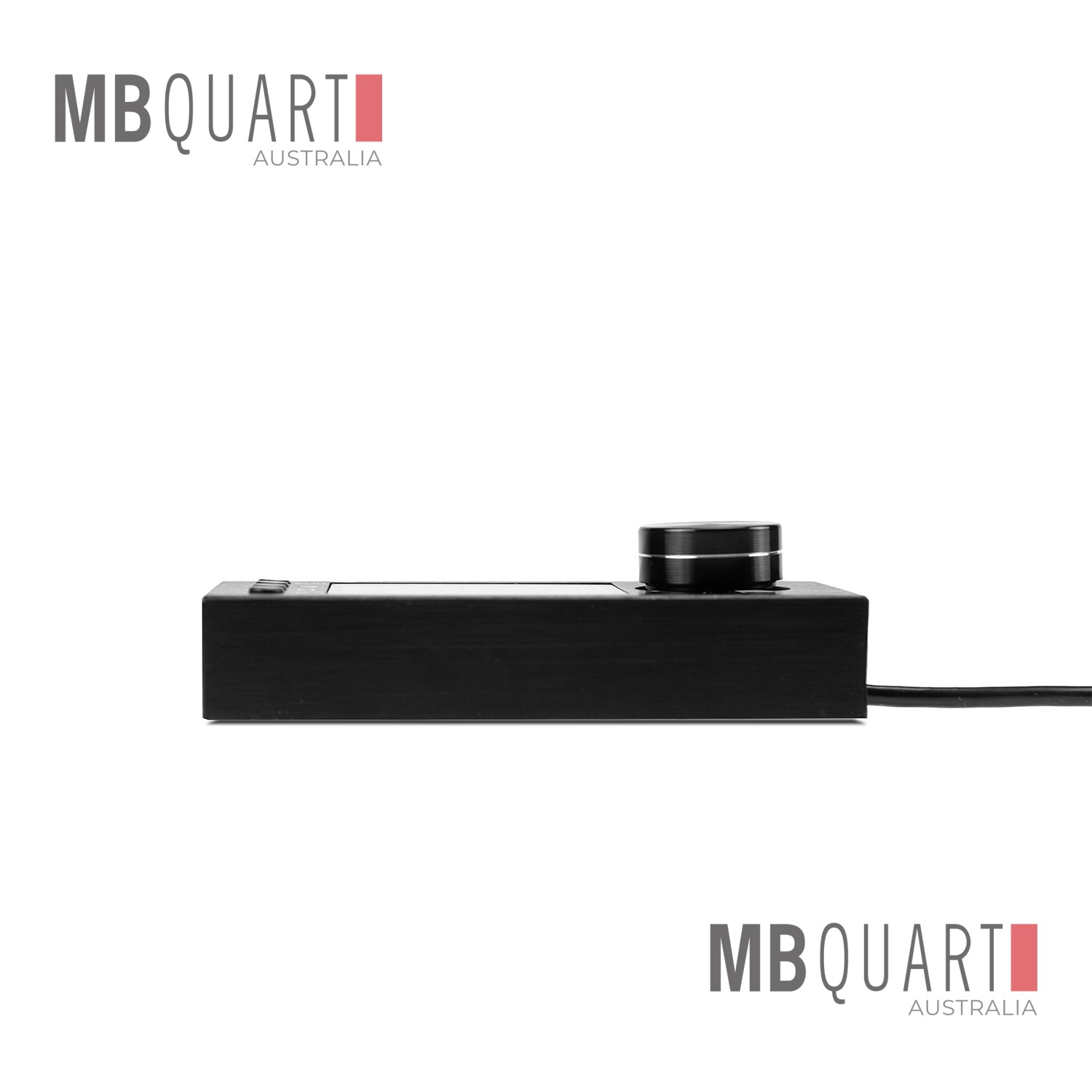

| Bass Remote Included | Included: Wired LED Remote allows adjustments to audio playback, preset selection, sub and master volume. |
| Phase Adjustment | DSP: 0º-180º |
| Parametric / Signal Contouring | DSP: Parametric(full variable customizing of freq)/Graphic(31 bands cant change the Freq) |
| Auto Turn-On | DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the High Level inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
| Additional Features | "PC/iPhone/Android applications allow for complete tuning control to perfectly dial-in the sound experience. Integrated Bluetooth receiver for controlling the DSP smartphone application. REM OUT Function for daisy chaining remote wire to an additional amplifier like a QA1-1500.1D" |
Also available is an App allowing tuning on the go once connected via Bluetooth
