Three Speaker 800 Watt STAGE 3 Audio System designed to integrate into the vehicle’s RIDE COMMAND source unit to control the system which includes two power amplifiers powering 2 compression horn speakers, 10″ subwoofer in a ported enclosure. All necessary mounting panels & harnessing are included
Three Speaker 800 Watt STAGE 3 Audio System
Three Speaker 800 Watt STAGE 3 Audio System
$2,679.00
| Series | Polaris RZR Tuned |
|---|---|
| Colour | Black |
| Warranty | 2 Years |
| IPX Rating | IPX5, IPX67 |
| UTV Kit Total System Power (watts) | 800 |
| Additional Details | See Kit Inclusions and Features & Benefits for product components and details. |
| Source Unit | SOURCE UNIT INTEGRATION: Adapters to integrate with Polaris RIDE COMMAND (The actual RIDE COMMAND source unit is NOT INCLUDED). |
| Front Speakers | 8 inch 2 Way NH1-120B Compression Horn Speakers, lower right & left speaker pods for 8 inch speakers, easy installation template. |
| Front Speakers Mounting | Kick panel mounted HDPE composite enclosures are premounted into pods for simple installation. |
| Subwoofer | 10 inch, Dual 4 ohm Subwoofer, RZR Specific Under-Dash Ported Subwoofer Enclosure. |
| Subwoofer Mounting | Replaces the glovebox and mounting bolts and plates are included. |
| Full Range Amplifier | NA2-400.2RC: 400 Watt Two Channel Class D, Compact Powersports Amplifier that has been engineered for superior integration with RIDE COMMAND. |
| Full Range Amplifier Mounting | Full system harness capable of accommodating source unit, 2 amplifiers, which power 4 speakers, and the subwoofer. |
| Subwoofer Amplifier | High efficiency NA2-400.1 400 Watt Class D, Compact Powersports mono Subwoofer Amplifier. |
| Subwoofer Amplifier Mounting | RZR Amplifier Mounting Brackets are included. |
| Harnessing | Full system harness capable of accommodating source unit, 2 amplifiers, which power 4 speakers, and the subwoofer. |
| Accessories | MBQR-ACC-1: RZR Radio and Dual Amplifier Harness is included with the system. RIDE COMMAND adapters are included. |
| Compatible Vehicle Fitment | Polaris RZR 2014-Current with RIDE COMMAND |

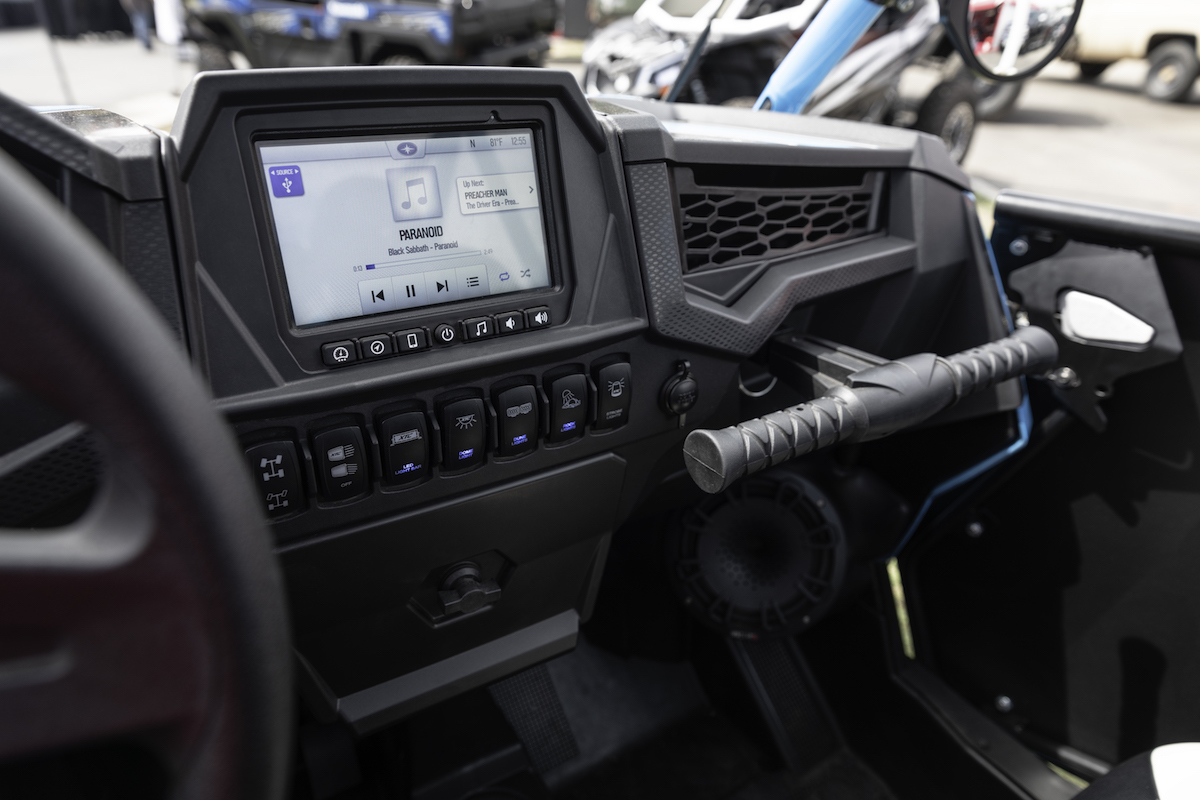

| Source Unit Features | Integration with RIDE COMMAND, a high-tech source unit with an off-road display that acts as the hub and integrates your phone, GPS, audio, and communication systems. The actual RIDE COMMAND source unit is NOT INCLUDED. |

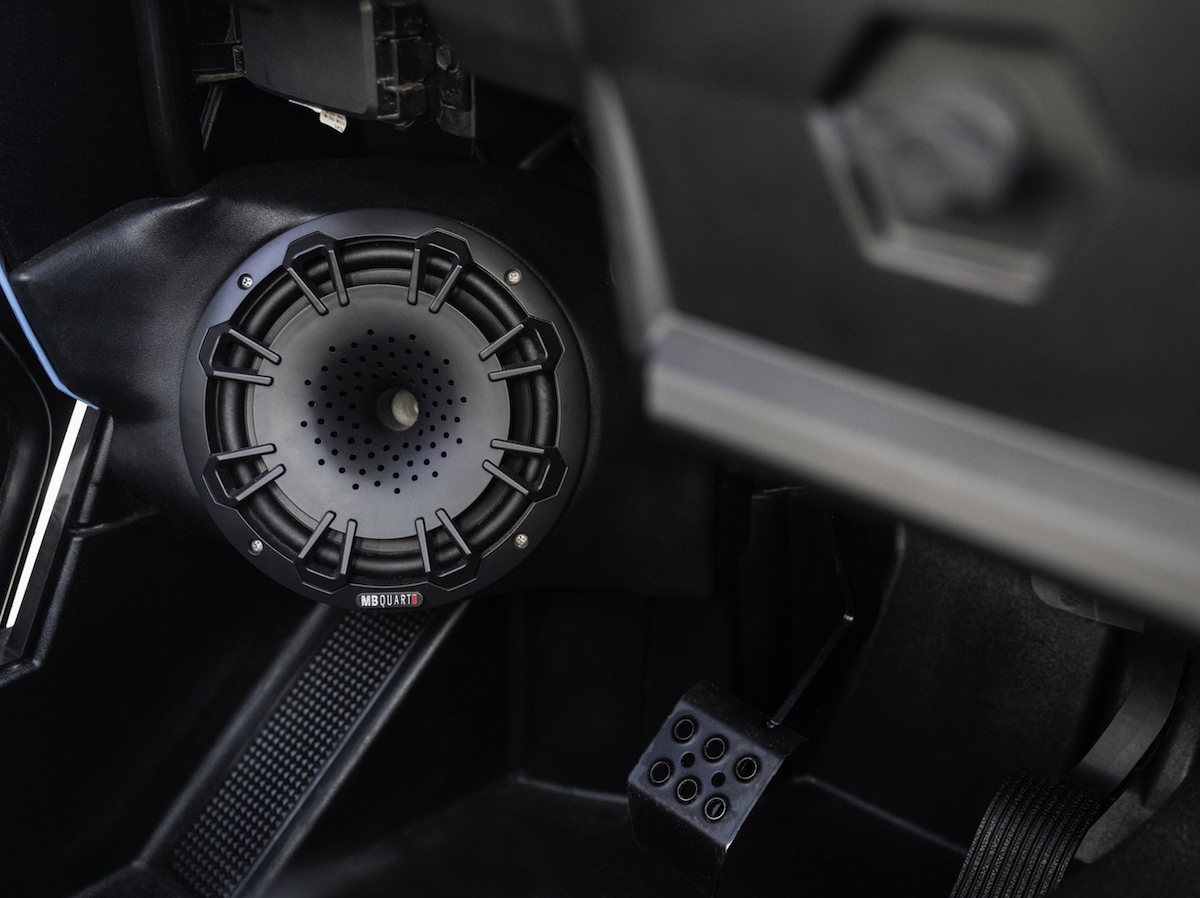

| Speaker Features | The front speakers are meticulously engineered to fit in the RZR kick panels. The entire system utilizes the MB Quart compression horn technology. (See inside here). This design assures that the system will be louder and better sounding than anything else on the trails. Upgrade this system to a STAGE 5 by adding the rear speakers, NHT1-120BPR. The harness is already wired for the upgrade. |
| Amplifier Features | The RZR system is powered by the NA2 series of amplifiers. The stereo amplifier is operating in 2 ohm mode for maximum volume for all 4 speakers when utilized in a STAGE 5 configuration (front and rear pods). Upgrade this system to a STAGE 5 by adding the rear speakers, NHT1-120BPR. The harness is already wired for the upgrade. |
| Subwoofer Features | 400 Watt Specific 10 inch Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, RZR ported glovebox Subwoofer Enclosure, powered by the 400 Watt High Efficiency Class D amplifier. |
| Mount / Harness | Plug and Play Harness. Waterproof Connectors with premeasured wires. No guesswork and no installation mistakes. |
| Time and Tools | Standard hand tools are required. See the manual for time on each of the different components. |
